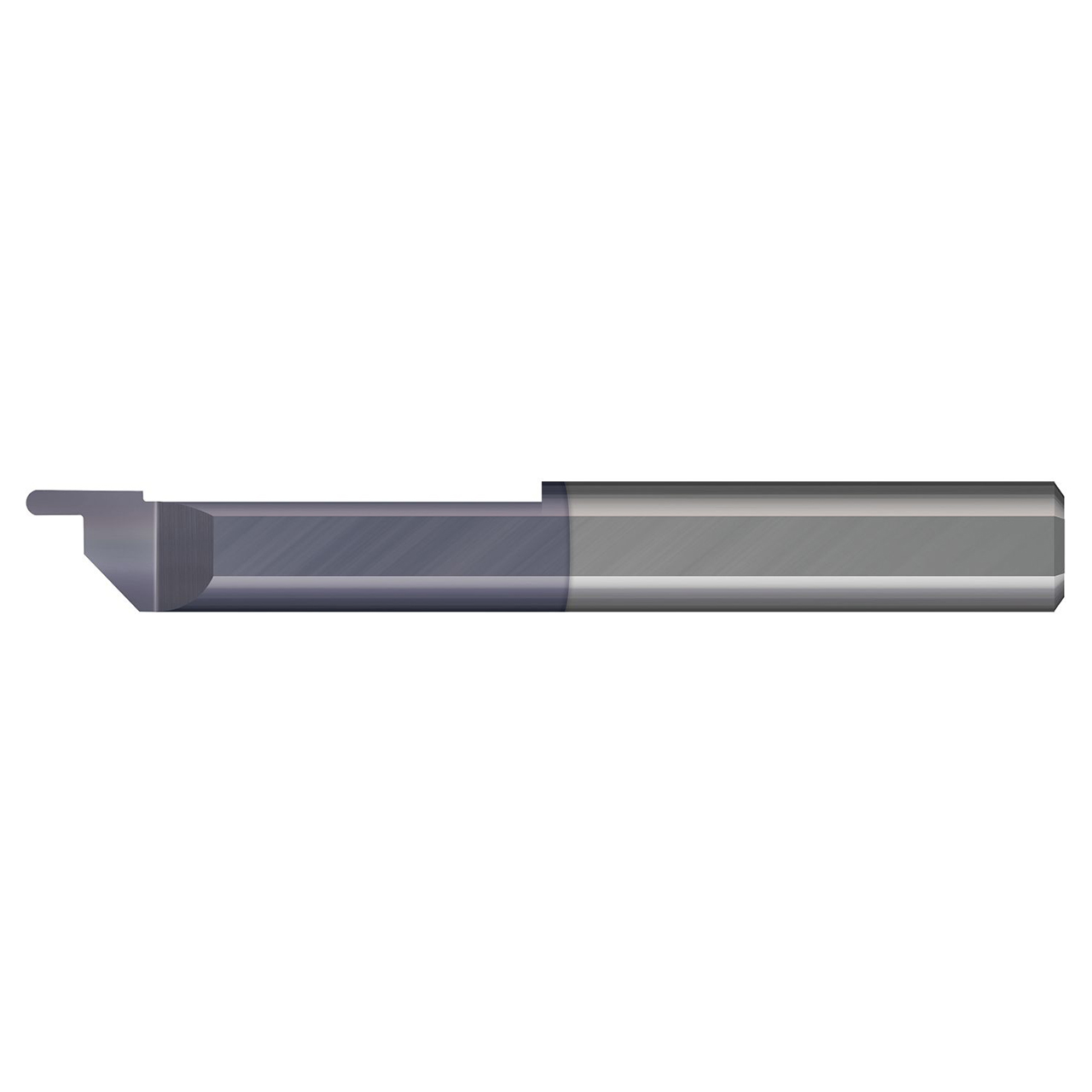

Micro 100 FGIF-1413X | 0.302" Minimum Bore Diameter x 1.250" (1-1/4) Maximum Bore Depth x 0.060" Projection x 0.015" (1/64) Radius AlTiN Coated Right Hand Grooving Tool

Our internal tooth full radius face grooving tool is engineered to generate a full radius groove around a boss in the face of a part, and feature a polished split face for improved edge retention.

• Significantly reduces cycle times, as right hand design allows for multiple tools to be run simultaneously
• Relief ground along maximum turn depth (L2) to avoid interference during long turning applications
• Polished split face for improved edge retention and chip evacuation while reducing galling
• Split face geometry provides optimal edge strength
• Full radius profile
• Lockdown flat automatically locates tool on center
• AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
• Solid carbide
• CNC ground in the USA
