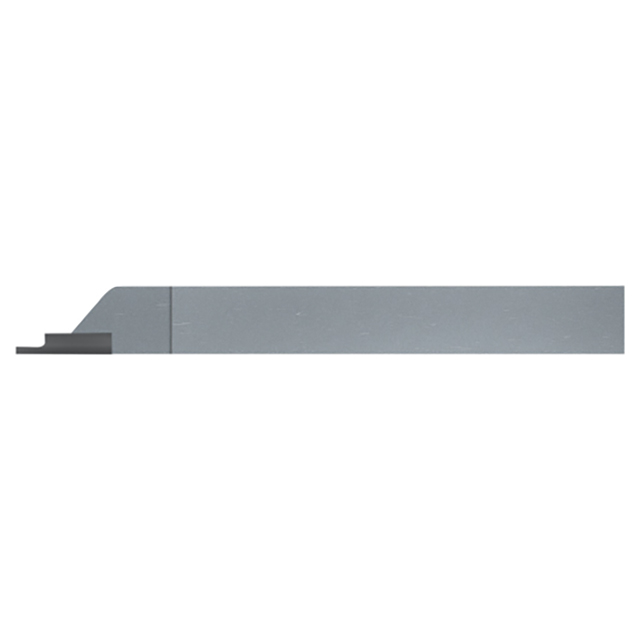

Micro 100 GS-122002 | 0.122" Width x 0.3300" Projection x 0.003" Radius x 0.3750" Square Shank x 3" OAL Uncoated Brazed Carbide Grooving Tool

$37.35
Ships:
From Partner Facility
Brand:
Micro 100
Material:
Carbide
Shank Diameter (Decimal Inch):
0.3750"
Groove Width (Decimal Inch):
0.122"
Projection (Decimal Inch):
0.3300"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.00"
Finish/Coating:
Uncoated
Radius (Decimal Inch):
0.003"
Ships:
From Partner Facility
SKU:
25127400
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Product Specifications
Finish/Coating Uncoated
Max Bore Depth (Decimal Inch) 0.400"
Projection (Decimal Inch) 0.3300"
Corner Radius (Decimal Inch) 0.003"
Overall Length (Inch) 3"
Overall Length (Decimal Inch) 3.00"
Shank Height (Inch) 3/8"
Shank Height (Decimal Inch) 0.3750"
Shank Width (Inch) 3/8"
Shank Width (Decimal Inch) 0.3750"
Tooth Width (Decimal Inch) 0.1220"
