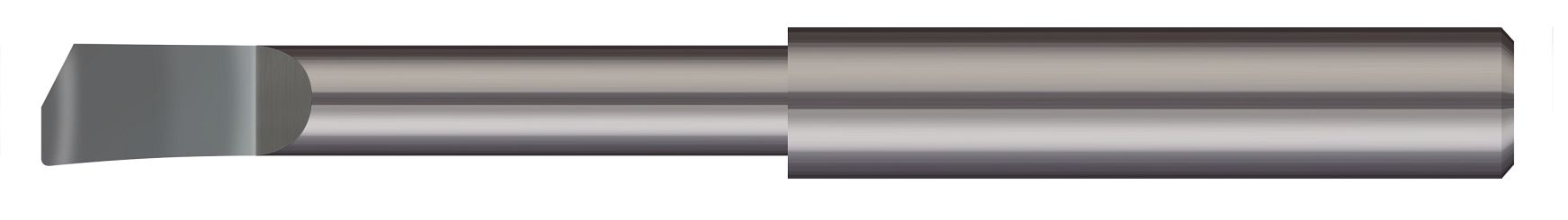

This fully stocked offering of Micro 100 Helical Back Rake Boring Tools features a corner radius profile for added strength and improved tool life. This unique tool is also available for use with Micro 100's Micro-Quik.
- Designed for boring applications in bores .030" and larger
- Polished face for improved edge retention and chip evacuation while reducing galling
- Helical grind provides ideal top rake for better chip control and freer cutting
- Well suited for machining plastics
- On center neck design allows for static and live/rotating applications
- Lockdown flat automatically locates tool on center
- Corner radius profile
- Solid carbide
- CNC ground in the USA
Product Specifications
| Min Bore Diameter (Inch) | 0.1100" (2.8 mm) |
| Hand Direction | Right Hand |
| Finish/Coating | Uncoated |
| Max Bore Depth (Inch) | 0.500" (1/2) |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Centerline Offset (Inch) | 0.0600" |
| Radius (Inch) | 0.0040" |
| Face Dimension | 0.063" (1/16) |
| Neck Diameter (Inch) | 0.1000" |
| Overall Length (Inch) | 1.50" (1-1/2) |
| Rotational Min Bore Diameter (Inch) | 0.120" |
