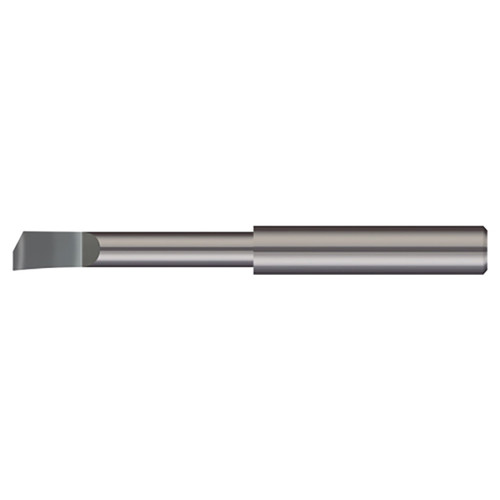

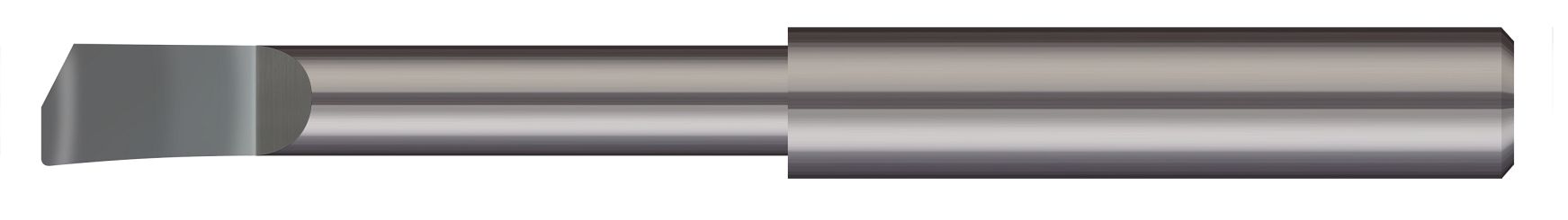

Micro 100 HBBC-3001750-004 | 0.2750" Minimum Bore Diameter x 1.750" Maximum Bore Depth x 5/16" Shank x 2-1/2" OAL Uncoated Carbide Boring Bar

$42.45 $39.74
(You save $2.71)
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25175589
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

This fully stocked offering of Micro 100 Helical Back Rake Boring Tools features a corner radius profile for added strength and improved tool life. This unique tool is also available for use with Micro 100's Micro-Quik.

  • Designed for boring applications in bores .030" and larger
  • Polished face for improved edge retention and chip evacuation while reducing galling
  • Helical grind provides ideal top rake for better chip control and freer cutting
  • Well suited for machining plastics
  • On center neck design allows for static and live/rotating applications
  • Lockdown flat automatically locates tool on center
  • Corner radius profile
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.2750"
Hand Direction Right Hand
Finish/Coating Uncoated
Max Bore Depth (Inch) 1.750" (1-3/4)
Shank Diameter (Inch) 0.3125" (5/16)
Centerline Offset (Inch) 0.1500"
Radius (Inch) 0.0040"
Face Dimension 0.156" (5/32)
Neck Diameter (Inch) 0.2500" (1/4)
Overall Length (Inch) 2.50" (2-1/2)
Rotational Min Bore Diameter (Inch) 0.300"
