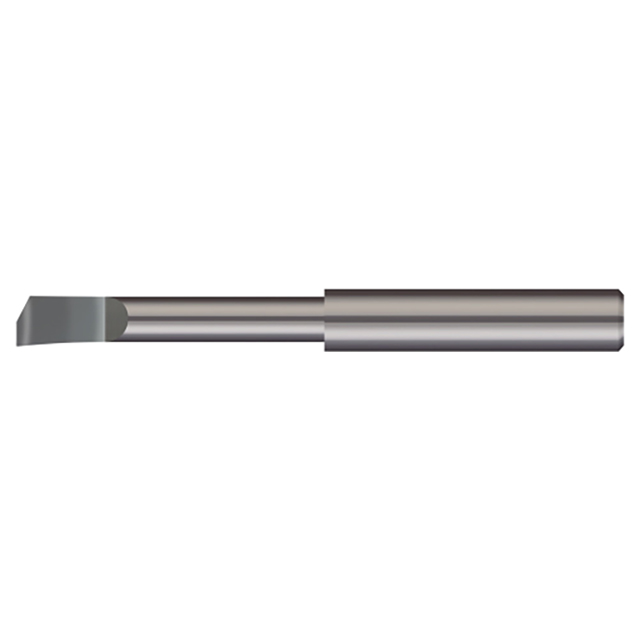

| Min Bore Diameter (mm) | 1.350mm |
| Hand Direction | Right Hand |
| Finish/Coating | Uncoated |
| Max Bore Depth (mm) | 9mm |
| 0.150mmShank Diameter (mm) | 3mm |
| Centerline Offset (mm) | 0.750mm |
| Face Dimension (mm) | 0.06mm |
| Neck Diameter (mm) | 1.200mm |
| Overall Length (mm) | 38mm |
| Split Length (mm) | 3mm |
| Metric (Yes/No) | Yes |
