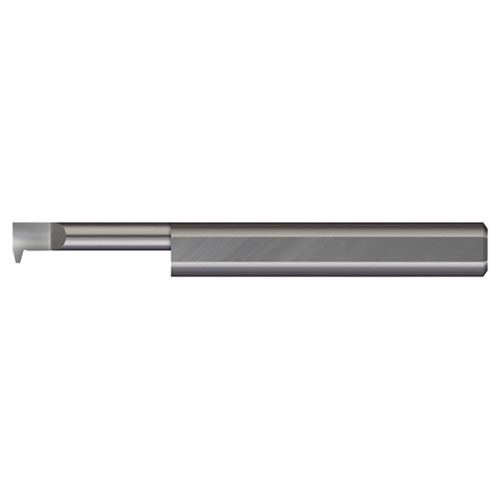

Micro 100 IAT-1000-14 | 14 TPI x 0.2550" Minimum Bore Diameter x 1" Maximum Bore Depth x 5/16" Shank x 2.50" OAL Uncoated Brazed Carbide Single Point Acme Threading Tool

$47.40
Ships:
From Partner Facility
Brand:
Micro 100
Material:
Carbide
Tool Bit Style:
IAT
Type:
Turning
Cutting Direction:
Right Hand
Shank Width/Diameter (Inch):
5/16"
Shank Width/Diameter (Decimal Inch):
0.3125"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.50"
Pitch (TPI):
14
Minimum Bore Diameter (Decimal Inch):
0.2550"
Maximum Bore Depth (Inch):
1"
Maximum Bore Depth (Decimal Inch):
1.000"
Finish/Coating:
Uncoated
Ships:
From Partner Facility
IsDiscontinued:
SKU:
15020413
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Product Specifications
Min Bore Diameter (Decimal Inch) 0.2550"
Hand Direction Right Hand
Finish/Coating Uncoated
Max Bore Depth (Inch) 1"
Max Bore Depth (Decimal Inch) 1.000"
Projection (Decimal Inch) 0.0700"
Shank Diameter (Inch) 5/16"
Shank Diameter (Decimal Inch) 0.3125"
Centerline Offset (Decimal Inch) 0.0988"
Offset (Decimal Inch) 0.043"
Face Dimension (Decimal Inch) 0.156"
Flat Width (Decimal Inch) 0.024"
Neck Diameter (Decimal Inch) 0.1800"
Overall Length (Inch) 2-1/2"
Overall Length (Decimal Inch) 2.50"
Split Length (Decimal Inch) 0.210"
Tooth Width (Decimal Inch) 0.0850"
TPI 14
