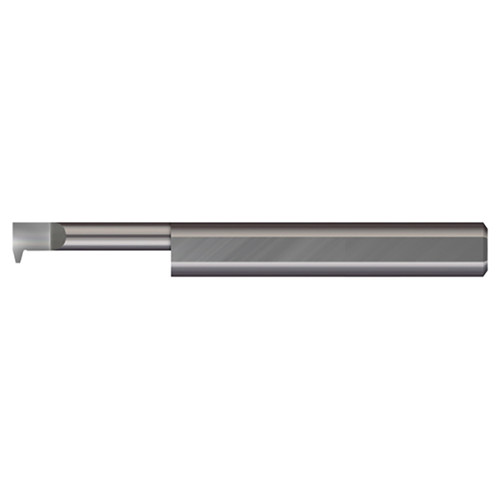

Micro 100 IAT-600-16 | 16 TPI x 0.2000" Minimum Bore Diameter x Maximum Bore Depth x 1/4" Shank x 2.50" OAL Uncoated Brazed Carbide Single Point Acme Threading Tool

$38.30
Ships:
From Partner Facility
Brand:
Micro 100
Material:
Carbide
Tool Bit Style:
IAT
Type:
Turning
Cutting Direction:
Right Hand
Shank Width/Diameter (Inch):
1/4"
Shank Width/Diameter (Decimal Inch):
0.2500"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.50"
Pitch (TPI):
16
Minimum Bore Diameter (Decimal Inch):
0.2000"
Maximum Bore Depth (Decimal Inch):
0.600"
Finish/Coating:
Uncoated
Ships:
From Partner Facility
IsDiscontinued:
SKU:
15020443
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Product Specifications
Min Bore Diameter (Decimal Inch) 0.2000"
Hand Direction Right Hand
Finish/Coating Uncoated
Max Bore Depth (Decimal Inch) 0.600"
Projection (Decimal Inch) 0.0450"
Shank Diameter (Inch) 1/4"
Shank Diameter (Decimal Inch) 0.2500"
Centerline Offset (Decimal Inch) 0.0750"
Offset (Decimal Inch) 0.024"
Face Dimension (Inch) 1/8"
Face Dimension (Decimal Inch) 0.125"
Flat Width (Decimal Inch) 0.021"
Neck Diameter (Decimal Inch) 0.1500"
Overall Length (Inch) 2-1/2"
Overall Length (Decimal Inch) 2.50"
Split Length (Decimal Inch) 0.175"
Tooth Width (Inch) 3/64"
Tooth Width (Decimal Inch) 0.0470"
TPI 16
