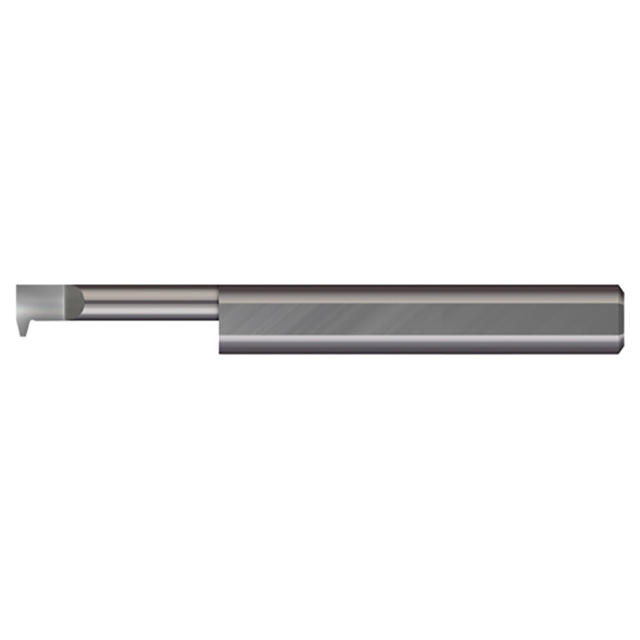

Micro 100 IAT-750-10 | 10 TPI x 0.490" Minimum Bore Diameter x 3/4" Maximum Bore Depth x 1/2" Shank x 3.000" OAL Uncoated Brazed Carbide Single Point Acme Threading Tool

About This Item

Product Specifications

Min Bore Diameter (Decimal Inch)	0.4900"
Hand Direction	Right Hand
Finish/Coating	Uncoated
Max Bore Depth (Inch)	3/4"
Max Bore Depth (Decimal Inch)	0.750"
Projection (Decimal Inch)	0.1200"
Shank Diameter (Inch)	1/2"
Shank Diameter (Decimal Inch)	0.5000"
Centerline Offset (Decimal Inch)	0.2400"
Offset (Decimal Inch)	0.060"
Face Dimension (Inch)	1/4"
Face Dimension (Decimal Inch)	0.250"
Flat Width (Decimal Inch)	0.032"
Neck Diameter (Inch)	3/8"
Neck Diameter (Decimal Inch)	0.3750"
Overall Length (Inch)	3"
Overall Length (Decimal Inch)	3.00"
Split Length (Decimal Inch)	0.275"
Tooth Width (Decimal Inch)	0.1190"
TPI	10
