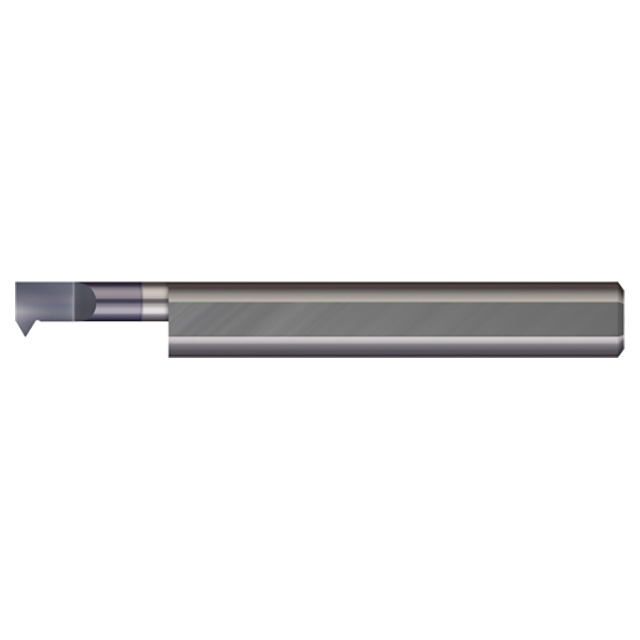

Micro 100 IT-100250X | 40-56 Thread Range x 0.1000" Minimum Bore Diameter x 1/4" Maximum Bore Depth x 1/8" Shank x 1-1/2" OAL AlTiN Coated Brazed Carbide Single Point 60 Degree Right Hand Threading Tool

$38.95
Ships:
From Partner Facility
Brand:
Micro 100
Material:
Carbide
Tool Bit Style:
IT
Type:
Turning
Cutting Direction:
Right Hand
Shank Width/Diameter (Inch):
1/8"
Shank Width/Diameter (Decimal Inch):
0.1250"
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.50"
Minimum Bore Diameter (Decimal Inch):
0.1000"
Maximum Bore Depth (Inch):
1/4"
Maximum Bore Depth (Decimal Inch):
0.250"
Thread Size:
40-56
Finish/Coating:
AlTiN
Ships:
From Partner Facility
IsDiscontinued:
SKU:
15020483
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Product Specifications
Min Bore Diameter (Decimal Inch) 0.1000"
Hand Direction Right Hand
Finish/Coating AlTiN
Max Bore Depth (Inch) 1/4"
Max Bore Depth (Decimal Inch) 0.250"
Projection (Decimal Inch) 0.0250"
Shank Diameter (Inch) 1/8"
Shank Diameter (Decimal Inch) 0.1250"
Centerline Offset (Decimal Inch) 0.0375"
Offset (Decimal Inch) 0.014"
Radius (Decimal Inch) 0.0020"
Angle per Side 30
Face Dimension (Inch) 1/16"
Face Dimension (Decimal Inch) 0.063"
Neck Diameter (Decimal Inch) 0.0700"
Overall Length (Inch) 1-1/2"
Overall Length (Decimal Inch) 1.50"
Split Length (Decimal Inch) 0.060"
Thread Size 40-56
Tooth Width (Decimal Inch) 0.0440"
