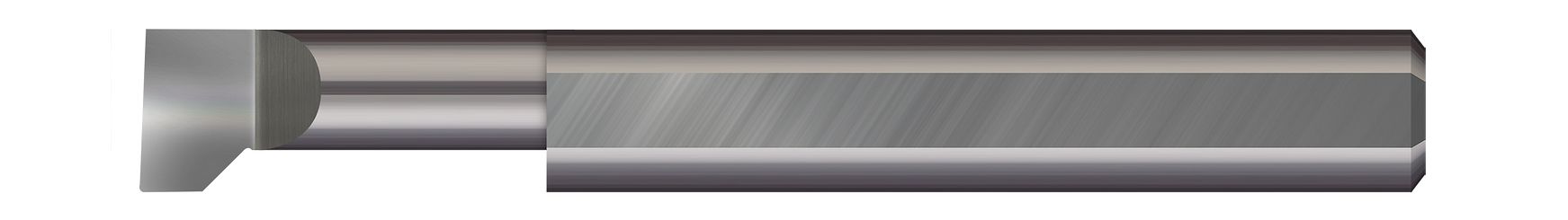

Micro 100 LTR-250-12X | 0.2720" Minimum Bore Diameter x 3/4" Maximum Bore Depth x 0.005" Radius x 0.0940" Flat x 1/4" Shank x 2-1/2" OAL AlTiN Coated Carbide Threading Tool

$42.60 $39.92
(You save $2.68)
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25175609
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Micro 100's LTR product line, its solid carbide thread relief tool, is designed for plunging thread relief at the bottom of a thread and features a lockdown flat that automatically locates tool on center.

  • Designed for plunging thread relief at the bottom of a thread
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split geometry makes the tool as rigid as possible
  • Lockdown flat automatically locates tool on center
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.2720"
Hand Direction Right Hand
Finish/Coating AlTiN
Max Bore Depth (Inch) 0.750" (3/4)
Projection (Inch) 0.0500"
Shank Diameter (Inch) 0.2500" (1/4)
Centerline Offset (Inch) 0.1250" (1/8)
Corner Radius (Inch) 0.005"
Face Dimension 0.125" (1/8)
Neck Diameter (Inch) 0.2000"
Overall Length (Inch) 2.50" (2-1/2)
Tooth Width (Inch) 0.0940"
