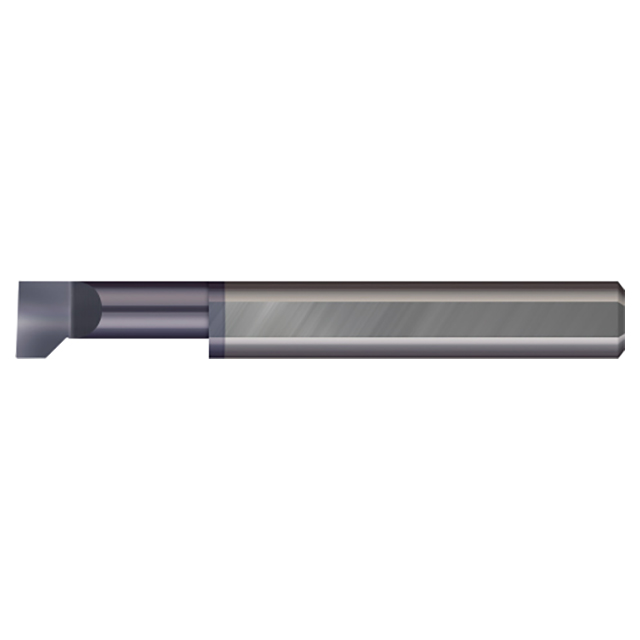

Micro 100 LTR-250-8X | 1/4" Minimum Bore Diameter x 1/2" Maximum Bore Depth x 1/2" Radius x 0.094" Flat x 1/4" Shank x 2.50" OAL AlTiN Coated Brazed Carbide Right Hand Thread Relief Tool

$45.80
Ships:
From Partner Facility
Brand:
Micro 100
Material:
Carbide
Tool Bit Style:
LTR
Type:
Turning
Cutting Direction:
Right Hand
Shank Width/Diameter (Inch):
1/4"
Shank Width/Diameter (Decimal Inch):
0.2500"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.50"
Minimum Bore Diameter (Inch):
1/4"
Minimum Bore Diameter (Decimal Inch):
0.2500"
Maximum Bore Depth (Inch):
1/2"
Maximum Bore Depth (Decimal Inch):
0.500"
Flat:
0.094"
Finish/Coating:
AlTiN
Flat (Decimal Inch):
0.0940"
Ships:
From Partner Facility
SKU:
25127814
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Product Specifications
Min Bore Diameter (Inch) 1/4"
Min Bore Diameter (Decimal Inch) 0.2500"
Hand Direction Right Hand
Finish/Coating AlTiN
Max Bore Depth (Inch) 1/2"
Max Bore Depth (Decimal Inch) 0.500"
Projection (Decimal Inch) 0.0500"
Shank Diameter (Inch) 1/4"
Shank Diameter (Decimal Inch) 0.2500"
Centerline Offset (Inch) 1/8"
Centerline Offset (Decimal Inch) 0.1250"
Corner Radius (Decimal Inch) 0.005"
Face Dimension (Inch) 1/8"
Face Dimension (Decimal Inch) 0.125"
Neck Diameter (Decimal Inch) 0.1950"
Overall Length (Inch) 2-1/2"
Overall Length (Decimal Inch) 2.50"
Split Length (Decimal Inch) 0.175"
Tooth Width (Decimal Inch) 0.0940"
