Micro 100 MRR-015-150-060 | 0.0600" Min Bore DIA x 0.150" Max Bore Depth x 0.0150" (1/64) Tooth Width x 0.0200" Projection x 0.1250" (1/8) Shank DIA x 1.50" (1-1/2) Overall Length - Carbide Standard-Miniature Retaining Ring Grooving Right Hand

$35.50
Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.0700"
Finish/Coating:
Uncoated
Maximum Bore Depth (Decimal Inch):
0.1500"
Projection (Decimal Inch):
0.0200"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Neck Diameter (Decimal Inch):
0.0400"
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
SKU:
25179118
UPC:
Weight:
0.02 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

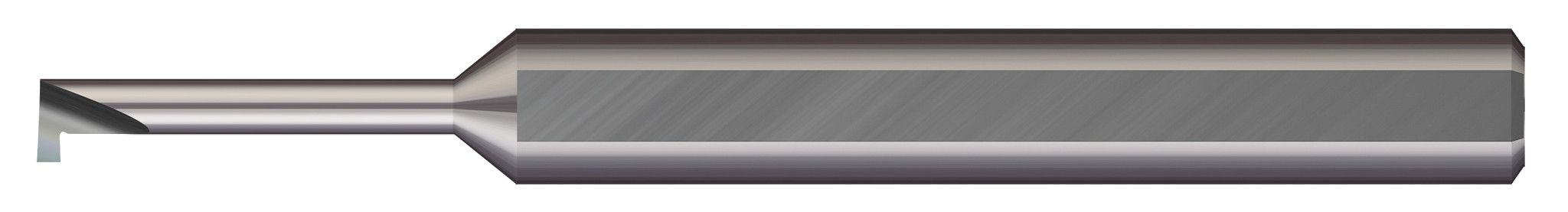

Photograph of a Micro 100 MRR-015-150-060 | 0.0600" Min Bore DIA x 0.150" Max Bore Depth x 0.0150" (1/64) Tooth Width x 0.0200" Projection x 0.1250" (1/8) Shank DIA x 1.50" (1-1/2) Overall Length - Carbide Standard-Miniature Retaining Ring Grooving Right Hand
Micro 100 MRR-015-150-060 | 0.0600" Min Bore DIA x 0.150" Max Bore Depth x 0.0150" (1/64) Tooth Width x 0.0200" Projection x 0.1250" (1/8) Shank DIA x 1.50" (1-1/2) Overall Length - Carbide Standard-Miniature Retaining Ring Grooving Right Hand. From the Micro 100 Standard - Grooving Tools - Retaining Ring - Square - Right Hand - Miniature product family.

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.0700"
Finish/Coating:
Uncoated
Maximum Bore Depth (Decimal Inch):
0.1500"
Projection (Decimal Inch):
0.0200"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Neck Diameter (Decimal Inch):
0.0400"
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
