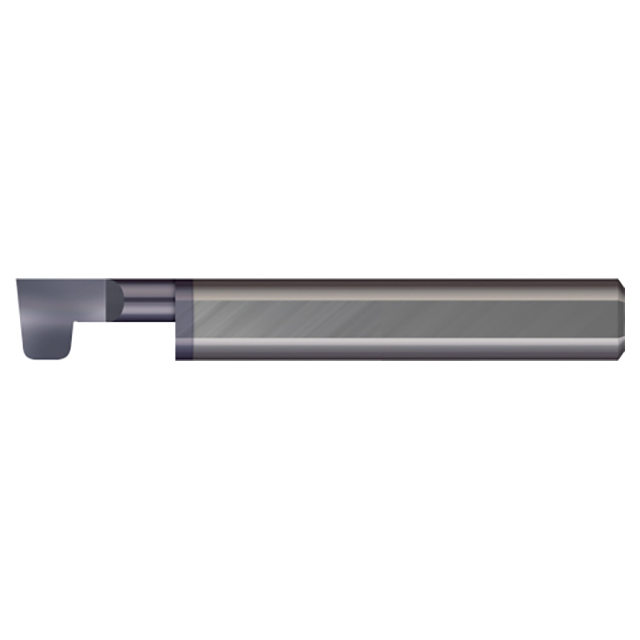

| Min Bore Diameter (Inch) | 1/4" |
| Min Bore Diameter (Decimal Inch) | 0.2500" |
| Hand Direction | Right Hand |
| Finish/Coating | AlTiN |
| Max Bore Depth (Inch) | 1/2" |
| Max Bore Depth (Decimal Inch) | 0.500" |
| Projection (Decimal Inch) | 0.1000" |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Centerline Offset (Inch) | 1/8" |
| Centerline Offset (Decimal Inch) | 0.1250" |
| Radius (Decimal Inch) | 0.0100" |
| Face Dimension (Inch) | 1/8" |
| Face Dimension (Decimal Inch) | 0.125" |
| Neck Diameter (Decimal Inch) | 0.1450" |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.50" |
| Split Length (Decimal Inch) | 0.260" |
| Tooth Width (Decimal Inch) | 0.0960" |
