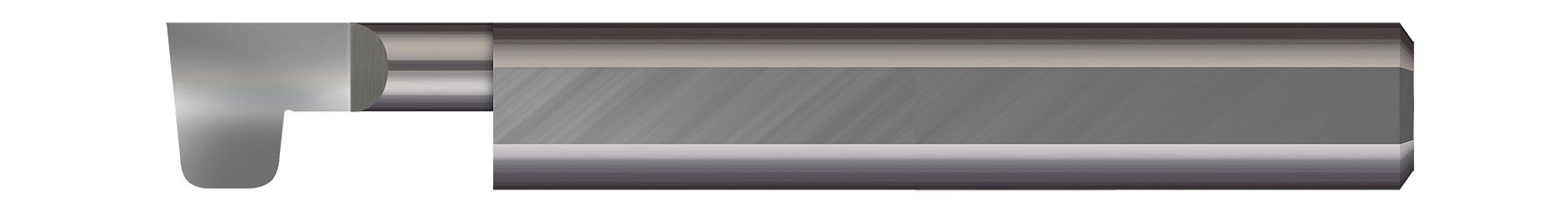

Micro 100 OR-208-13X | 0.3970" Minimum Bore Diameter x 13/16" Maximum Bore Depth x 0.2080" Width x 0.1150" Projection x 3/8" Shank x 2-1/2" OAL AlTiN Coated Carbide Grooving Tool

$82.50
Brand:
Micro 100
Finish/Coating:
AlTiN
Projection (Decimal Inch):
0.1150"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
interval quantity:
1
SKU:
25129119
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OR-208-13X

This Micro 100 OR product line of solid carbide O-Ring grooving tools CNC ground in the USA features a polished split face for improved edge retention and chip evacuation while reducing galling.

  • Designed for creating O-ring grooves
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Lockdown flat automatically locates tool on center
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.3970"
Hand Direction Right Hand
Finish/Coating AlTiN
Max Bore Depth (Inch) 0.812" (13/16)
Projection (Inch) 0.1150"
Shank Diameter (Inch) 0.3750" (3/8)
Centerline Offset (Inch) 0.1875" (3/16)
Radius (Inch) 0.0350"
Face Dimension 0.188" (3/16)
Neck Diameter (Inch) 0.2550"
Overall Length (Inch) 2.50" (2-1/2)
Split Length (Inch) 0.360"
Tooth Width (Inch) 0.2080"
