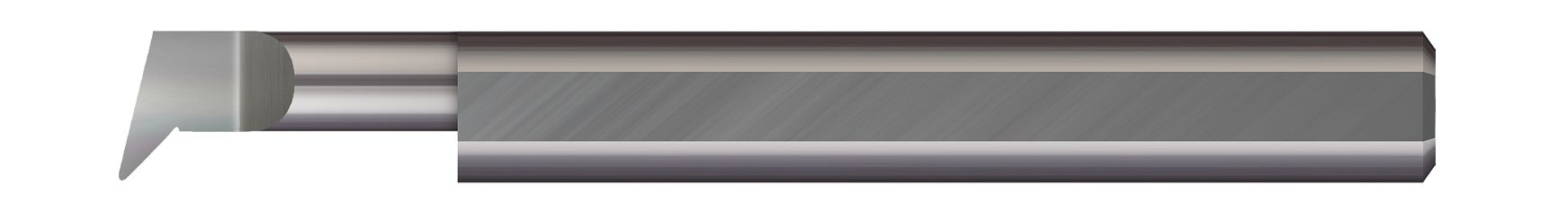

Micro 100's fully stocked, solid carbide Angled Profiling Tools are designed for both radial and axial profiling and are excellent for fine finishing. They feature a corner radius profile and a lockdown flat to automatically locate the tool on center.
- Designed for both radial and axial profiling
- Unique design maximizes tool versitilty and part feature creation
- Excellent choice for fine finishing
- Corner radius profile
- Lockdown flat automatically locates tool on center
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Min Bore Diameter (Inch) | 0.0900" |
| Hand Direction | Right Hand |
| Finish/Coating | Uncoated |
| Max Bore Depth (Inch) | 0.300" |
| Projection (Inch) | 0.0250" |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Centerline Offset (Inch) | 0.0175" |
| Corner Radius (Inch) | 0.002" |
| Neck Diameter (Inch) | 0.0550" (1.4 mm) |
| Overall Length (Inch) | 1.50" (1-1/2) |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.0900"
Head Width (Decimal Inch):
0.0800"
Finish/Coating:
Uncoated
Maximum Bore Depth (Decimal Inch):
0.3000"
Projection (Decimal Inch):
0.0250"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Corner Radius (Decimal Inch):
0.0020"
Neck Diameter (Decimal Inch):
0.0550"
Neck Diameter (mm):
1.40mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
