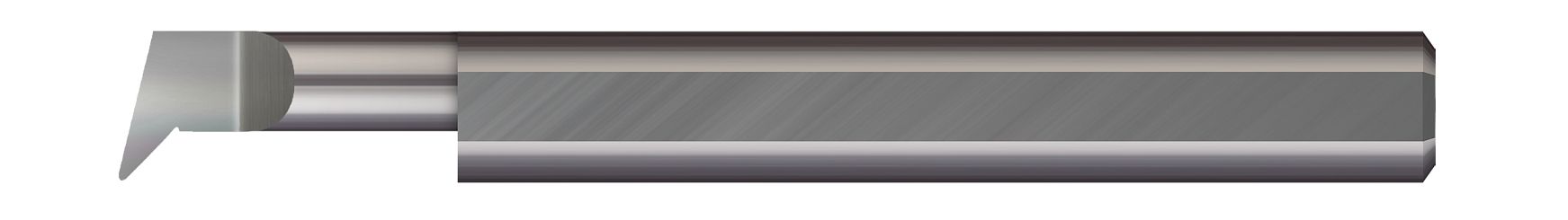

Micro 100 PA5-120250X | 0.1340" Minimum Bore Diameter x 0.250" Maximum Bore Depth x 0.005" Radius 3/16" Shank x 2" OAL AlTiN Coated Carbide Boring Bar

$37.15
Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.1340"
Head Width (Decimal Inch):
0.1200"
Finish/Coating:
AlTiN
Maximum Bore Depth (Inch):
1/4"
Maximum Bore Depth (Decimal Inch):
0.2500"
Projection (Decimal Inch):
0.0350"
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Corner Radius (Decimal Inch):
0.0050"
Neck Diameter (Decimal Inch):
0.0850"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
interval quantity:
1
SKU:
10233471
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
PA5-120250X

Micro 100's fully stocked, solid carbide Angled Profiling Tools are designed for both radial and axial profiling and are excellent for fine finishing. They feature a corner radius profile and a lockdown flat to automatically locate the tool on center.

  • Designed for both radial and axial profiling
  • Unique design maximizes tool versitilty and part feature creation
  • Excellent choice for fine finishing
  • Corner radius profile
  • Lockdown flat automatically locates tool on center
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.1340"
Hand Direction Right Hand
Finish/Coating AlTiN
Max Bore Depth (Inch) 0.250" (1/4)
Projection (Inch) 0.0350"
Shank Diameter (Inch) 0.1875" (3/16)
Centerline Offset (Inch) 0.0263"
Corner Radius (Inch) 0.005"
Neck Diameter (Inch) 0.0850"
Overall Length (Inch) 2" (2)
