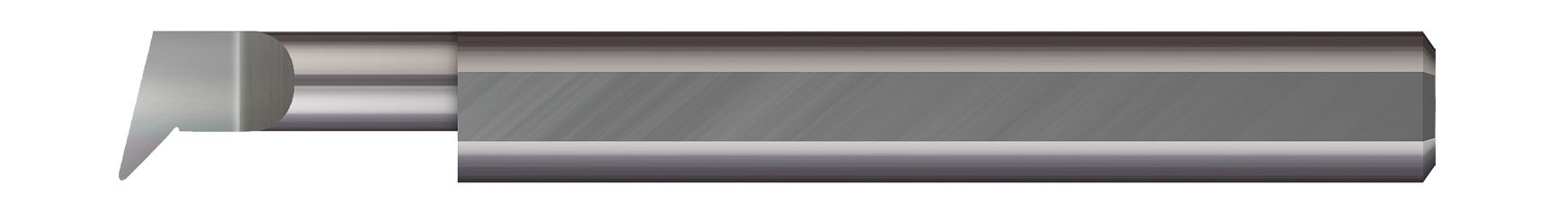

Micro 100 PA8-230750 | 0.2520" Minimum Bore Diameter x 0.750" Maximum Bore Depth x 0.008" Radius 5/16" Shank x 2-1/2" OAL Uncoated Carbide Boring Bar

$44.10 $41.27
(You save $2.83)
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
10233473
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Micro 100's fully stocked, solid carbide Angled Profiling Tools are designed for both radial and axial profiling and are excellent for fine finishing. They feature a corner radius profile and a lockdown flat to automatically locate the tool on center.

  • Designed for both radial and axial profiling
  • Unique design maximizes tool versitilty and part feature creation
  • Excellent choice for fine finishing
  • Corner radius profile
  • Lockdown flat automatically locates tool on center
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.2520"
Hand Direction Right Hand
Finish/Coating Uncoated
Max Bore Depth (Inch) 0.750" (3/4)
Projection (Inch) 0.0700"
Shank Diameter (Inch) 0.3125" (5/16)
Centerline Offset (Inch) 0.0738"
Corner Radius (Inch) 0.008"
Neck Diameter (Inch) 0.1600"
Overall Length (Inch) 2.50" (2-1/2)
