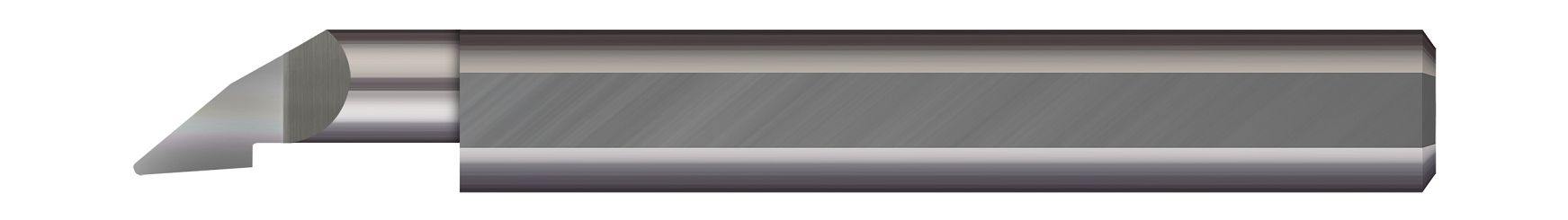

Micro 100 PF5-090300 | 0.100" Minimum Bore Diameter x 0.300" Maximum Bore Depth x 0.010" Projection x 1/8" Shank x 1-1/2" OAL Uncoated Carbide Right Hand Axial Profiling

Micro 100's fully stocked, solid carbide axial profiling tools for turning applications are engineered for both radial and axial profiling, and feature a coolant fed enabled shank design. Further, this tool is engineered with split geometry to make the tool as rigid as possible.

• Designed for both radial and axial profiling
• Unique design maximizes tool versitilty and part feature creation
• Polished split face for improved edge retention and chip evacuation while reducing galling
• Split geometry makes the tool as rigid as possible
• Coolant fed enabled shank design
• Corner radius profile
• Lockdown flat automatically locates tool on center
• AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
• Solid carbide
• CNC ground in the USA
