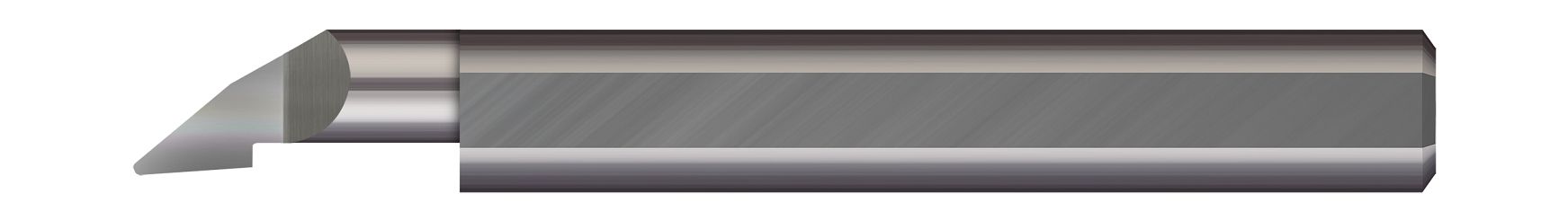

Micro 100 PF8-200800 | 0.2160" Minimum Bore Diameter x 0.800" Maximum Bore Depth x 0.0300" Projection x 1/4" Shank x 2-1/2" OAL Uncoated Carbide Right Hand Axial Profiling

$35.70 $33.44
(You save $2.26)
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25201924
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Micro 100's fully stocked, solid carbide axial profiling tools for turning applications are engineered for both radial and axial profiling, and feature a coolant fed enabled shank design. Further, this tool is engineered with split geometry to make the tool as rigid as possible.

  • Designed for both radial and axial profiling
  • Unique design maximizes tool versitilty and part feature creation
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split geometry makes the tool as rigid as possible
  • Coolant fed enabled shank design
  • Corner radius profile
  • Lockdown flat automatically locates tool on center
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.2160"
Hand Direction Right Hand
Finish/Coating Uncoated
Max Bore Depth (Inch) 0.800"
Projection (Inch) 0.0300"
Shank Diameter (Inch) 0.2500" (1/4)
Centerline Offset (Inch) 0.0750"
Radius (Inch) 0.0080"
Neck Diameter (Inch) 0.1700"
Overall Length (Inch) 2.50" (2-1/2)
