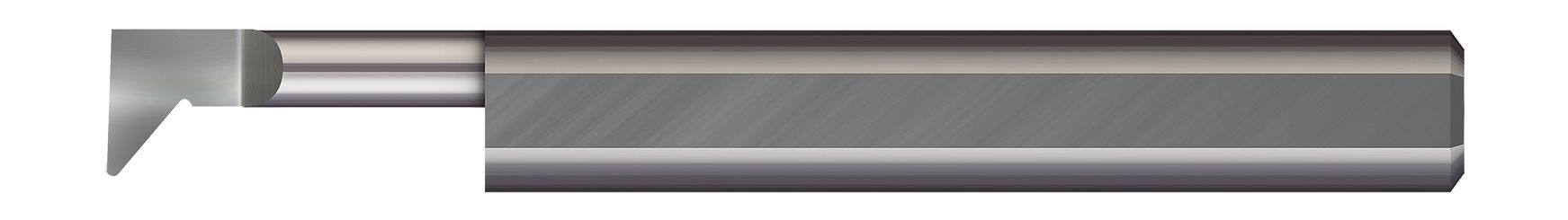

This Micro 100 solid carbide Radial Profiling Tool is also an excellent choice for fine finishing, and can even be used in thread relief applications.
| Min Bore Diameter (Inch) | 0.1000" |
| Hand Direction | Right Hand |
| Finish/Coating | AlTiN |
| Max Bore Depth (Inch) | 0.300" |
| Projection (Inch) | 0.0300" |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Centerline Offset (Inch) | 0.0275" |
| Corner Radius (Inch) | 0.002" |
| Neck Diameter (Inch) | 0.0600" |
| Overall Length (Inch) | 1.50" (1-1/2) |
