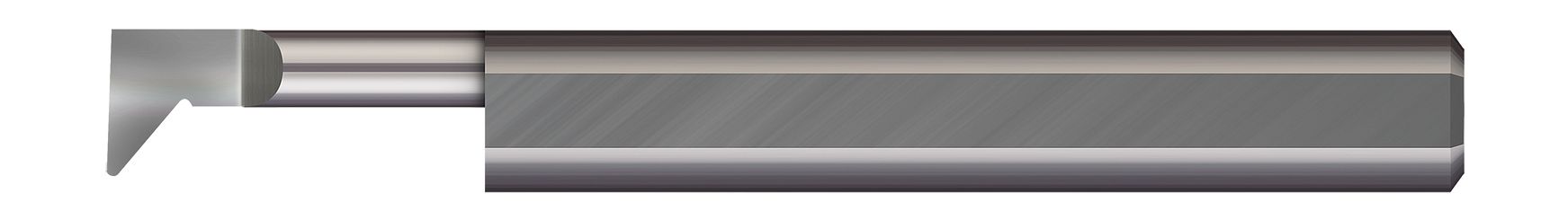

Micro 100 PR5-110500 | 0.1240" Minimum Bore Diameter x 0.500" Maximum Bore Depth x 0.005" Radius 1/8" Shank x 1-1/2" OAL Uncoated Carbide Boring Bar

$26.85 $25.11
(You save $1.74)
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
10233315
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
PR5-110500

This Micro 100 solid carbide Radial Profiling Tool is also an excellent choice for fine finishing, and can even be used in thread relief applications.

  • Designed for radial profiling
  • Excellent choice for fine finishing
  • Can be used in thread relief applications
  • Split geometry makes the tool as rigid as possible
  • Corner radius profile
  • Lockdown flat automatically locates tool on center
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid Carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.1240"
Hand Direction Right Hand
Finish/Coating Uncoated
Max Bore Depth (Inch) 0.500" (1/2)
Projection (Inch) 0.0400"
Shank Diameter (Inch) 0.1250" (1/8)
Centerline Offset (Inch) 0.0475"
Corner Radius (Inch) 0.005"
Neck Diameter (Inch) 0.0700"
Overall Length (Inch) 1.50" (1-1/2)
