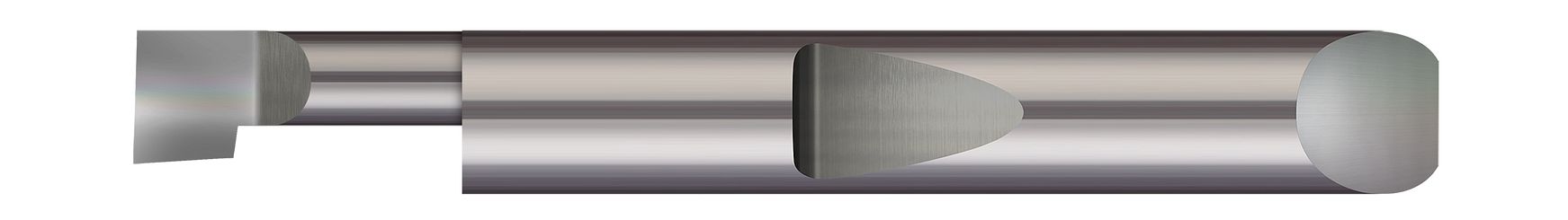

Micro 100 QBB-080400-000X | 0.0900" Minimum Bore Diameter x 0.400" Maximum Bore Depth x 3/16" Shank x 1-1/2" OAL AlTiN Coated Carbide Boring Bar

$40.15
Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.0900"
Finish/Coating:
AlTiN
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
interval quantity:
1
SKU:
10232764
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
QBB-080400-000X

Related Products

Engineered for facing and boring applications in bores .055" and larger, this solid carbide, right hand, sharp corner profile boring bar is offered fully stocked in both uncoated and AlTiN coated styles.

  • Designed for facing and boring applications in bores .055" and larger
  • Polished split face for improved edge retention and chip evacuation
  • while reducing galling
  • Split geometry makes the tool as rigid as possible
  • Coolant fed enabled shank design Sharp corner profile
  • Proprietary Micro-Quik quick change system maximizes
  • productivity through reliable accuracy and locational repeatability
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.0900"
Hand Direction Right Hand
Finish/Coating AlTiN
Max Bore Depth (Inch) 0.400"
Projection (Inch) 0.0200"
Shank Diameter (Inch) 0.1875" (3/16)
Centerline Offset (Inch) -0.0138"
Length from Holder 0.590"
Neck Diameter (Inch) 0.0600"
Overall Length (Inch) 1.50" (1-1/2)

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
