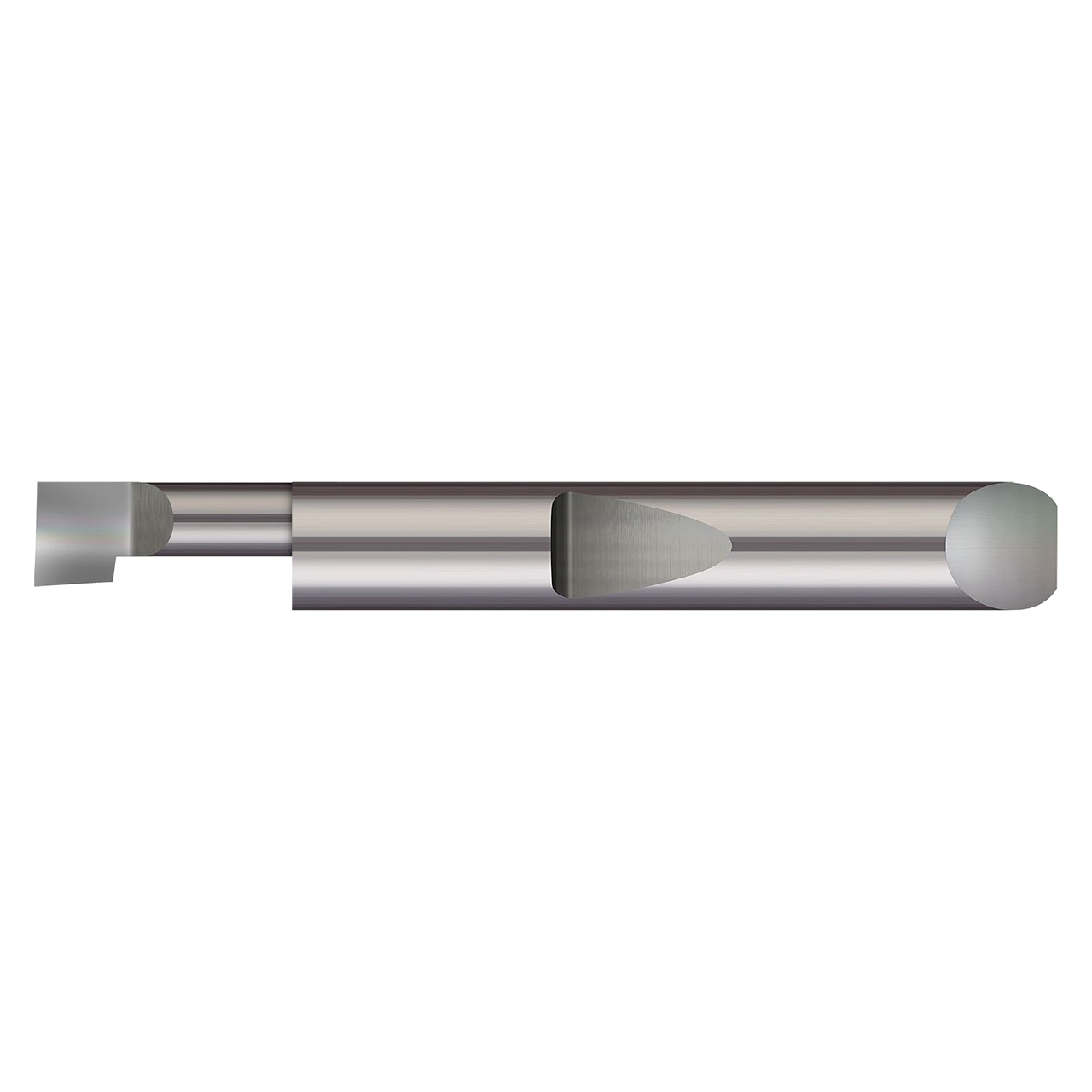

Micro 100 QBB-1601250-000 | 1.250" Maximum Bore Depth x 0.1875" Shank x 2.500" OAL x 0.0400" Projection Right hand Uncoated Boring Bar

Brand:

Micro 100

Minimum Bore Diameter (Inch):

11/64"

Minimum Bore Diameter (Decimal Inch):

0.1760"

Minimum Bore Diameter (mm):

4.47mm

Maximum Bore Depth (Inch):

1-1/4"

Maximum Bore Depth (Decimal Inch):

1.2500"

Maximum Bore Depth (mm):

31.75mm

Cutting Direction:

Right Hand

Shank Diameter (Inch):

3/16"

Shank Diameter (Decimal Inch):

0.1875"

Shank Diameter (mm):

4.76mm

Overall Length (Inch):

2-1/2"

Overall Length (Decimal Inch):

2.5000"

Overall Length (mm):

63.50mm

Finish/Coating:

Uncoated

SKU:

25294554

Weight:

1.23 LBS
