Product Specifications

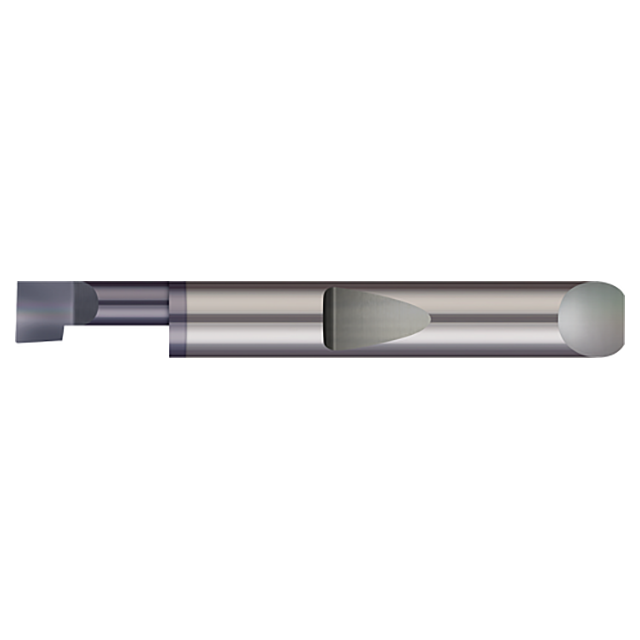

| Manufacturer Part Number | QBB8-2901000X |
| Minimum Bore Diameter (Decimal Inch) | 0.310" |
| Head Width (Decimal Inch) | 0.290" |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.000" |
| Maximum Bore Depth (Inch) | 1" |
| Projection (Decimal Inch) | 0.073" |
| Shank Diameter (Decimal Inch) | 0.312" |
| Shank Diameter (Inch) | 5/16" |
| Centerline Offset | 0.1338" |
| Corner Radius (Decimal Inch) | 0.008" |
| Length from Holder (Decimal Inch) | 1.353" |
| Neck Diameter (Decimal Inch) | 0.217" |
| Neck Diameter (mm) | 5.50mm |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (Inch) | 2-1/2" |
| Coating | AlTiN |
| Product Type | Quick Change Boring Tool |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.3100"
Minimum Bore Diameter (mm):
7.87mm
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3120"
Shank Diameter (mm):
7.92mm
Finish/Coating:
AlTiN
interval quantity:
1
