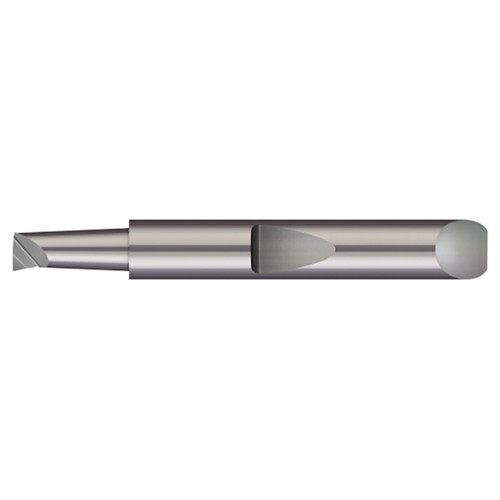

Micro 100 QBM-3602000 | 0.175" Centerline Offset x 2.000" Maximum Bore Depth x 0.008" Radius x 3/8" Shank x 3-1/2" OAL Uncoated Carbide Quick Change Boring Tool

About This Item

Product Specifications

Hand Direction	Right Hand
Finish/Coating	Uncoated
Max Bore Depth (Inch)	2"
Max Bore Depth (Decimal Inch)	2.000"
Projection (Decimal Inch)	0.0520"
Shank Diameter (Inch)	3/8"
Shank Diameter (Decimal Inch)	0.3750"
Centerline Offset (Decimal Inch)	0.1750"
Corner Radius (Decimal Inch)	0.008"
Length from Holder (Decimal Inch)	2.353"
Neck Diameter (Decimal Inch)	0.3350"
Overall Length (Inch)	3-1/2"
Overall Length (Decimal Inch)	3.50"
Tooth Width (Decimal Inch)	0.3030"
