| Manufacturer Part Number | QBT-050300X |
| Minimum Bore Diameter (Decimal Inch) | 0.0550" |
| Minimum Bore Diameter (mm) | 1.40mm |
| Maximum Bore Diameter (Decimal Inch) | 0.300" |
| Projection (Decimal Inch) | 0.0050" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter(mm) | 0.0438" |
| Corner Radius (Decimal Inch) | 0.002" |
| Hand Direction | Right Hand |
| Length from Holder (Decimal Inch) | 0.590" |
| Neck Diameter (Decimal Inch) | 0.0450" |
| Overall Length (Decimal Inch) | 1.50" |
| Overall Length (Inch) | 1-1/2" |
| Coating | AlTiN |

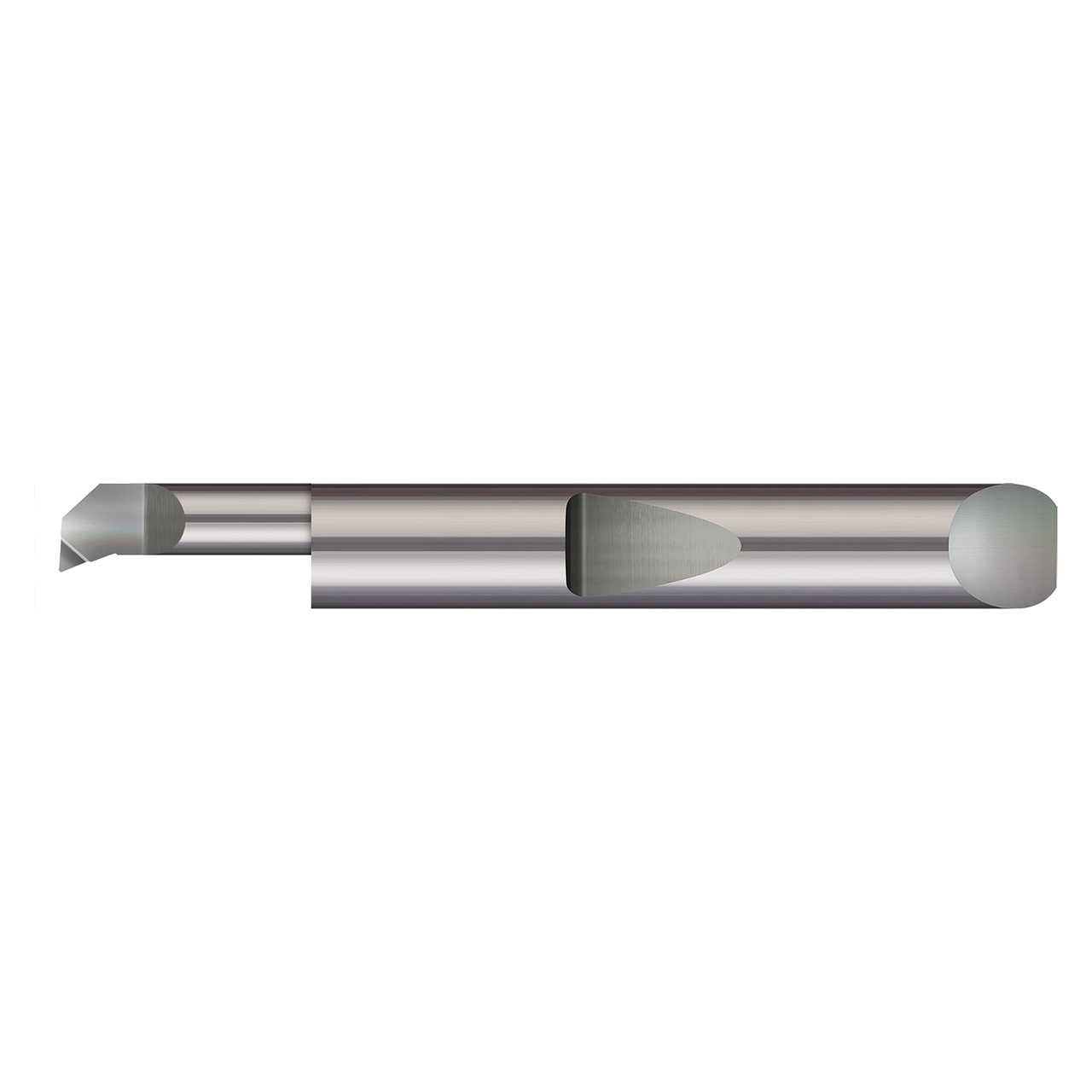

| Product Type | Boring Bar |
