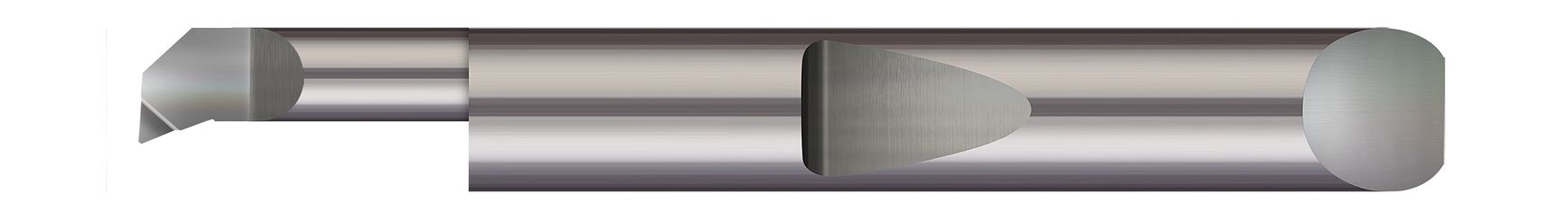

Micro 100 QBT4-260500X | 0.2800" Minimum Bore Diameter x 1/2" Maximum Bore Depth x 5/16" Shank x 2" OAL AlTiN Coated Carbide Boring Bar

$55.80 $53.24
(You save $2.56)
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
10233440
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
QBT4-260500X

Optimized for finishing operations, Micro 100's QBT, its solid carbide top rake chipbreaker boring bar, features geometry that provides freer cutting for an overall smoother turning operation.

  • Optimized for finishing operations
  • Top rake geometry provides freer cutting
  • Polished face for reducing galling
  • Coolant fed enabled shank design
  • Corner radius profile
  • Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.2800"
Hand Direction Right Hand
Finish/Coating AlTiN
Max Bore Depth (Inch) 0.500" (1/2)
Projection (Inch) 0.0450"
Shank Diameter (Inch) 0.3125" (5/16)
Centerline Offset (Inch) 0.1038"
Corner Radius (Inch) 0.004"
Length from Holder 0.853"
Neck Diameter (Inch) 0.2150"
Overall Length (Inch) 2" (2)
