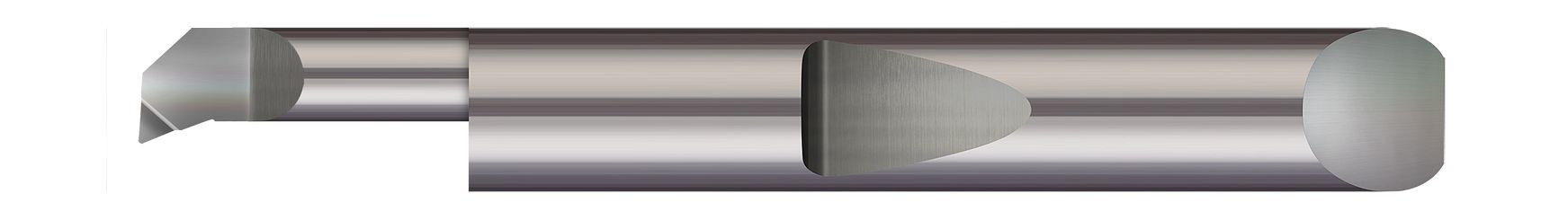

Optimized for finishing operations, Micro 100's QBT, its solid carbide top rake chipbreaker boring bar, features geometry that provides freer cutting for an overall smoother turning operation.
- Optimized for finishing operations
- Top rake geometry provides freer cutting
- Polished face for reducing galling
- Coolant fed enabled shank design
- Corner radius profile
- Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Min Bore Diameter (Inch) | 0.2800" |
| Hand Direction | Right Hand |
| Finish/Coating | Uncoated |
| Max Bore Depth (Inch) | 0.750" (3/4) |
| Projection (Inch) | 0.0450" |
| Shank Diameter (Inch) | 0.3125" (5/16) |
| Centerline Offset (Inch) | 0.1038" |
| Corner Radius (Inch) | 0.004" |
| Length from Holder | 0.853" |
| Neck Diameter (Inch) | 0.2150" |
| Overall Length (Inch) | 2" (2) |
