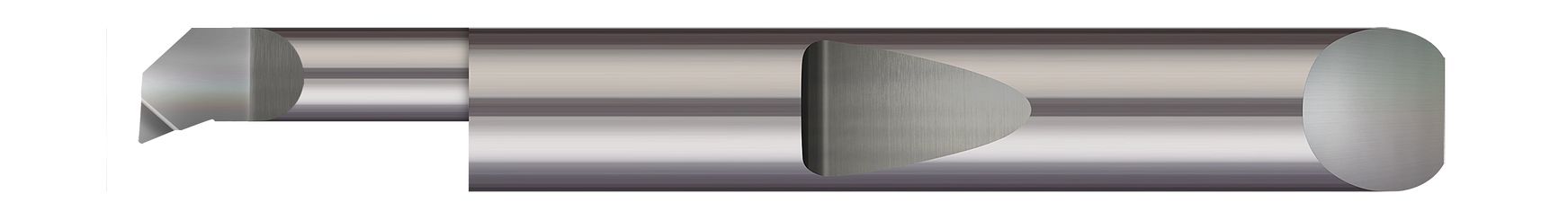

Optimized for finishing operations, Micro 100's QBT, its solid carbide top rake chipbreaker boring bar, features geometry that provides freer cutting for an overall smoother turning operation.
- Optimized for finishing operations
- Top rake geometry provides freer cutting
- Polished face for reducing galling
- Coolant fed enabled shank design
- Corner radius profile
- Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
Min Bore Diameter (Inch) | 0.2160" |
Hand Direction | Right Hand |
Finish/Coating | Uncoated |
Max Bore Depth (Inch) | 0.750" (3/4) |
Projection (Inch) | 0.0300" |
Shank Diameter (Inch) | 0.2500" (1/4) |
Centerline Offset (Inch) | 0.0750" |
Corner Radius (Inch) | 0.006" |
Length from Holder | 0.853" |
Neck Diameter (Inch) | 0.1700" |
Overall Length (Inch) | 2" (2) |

Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.2160"
Head Width (Decimal Inch):
0.2000"
Finish/Coating:
Uncoated
Maximum Bore Depth (Inch):
3/4"
Maximum Bore Depth (Decimal Inch):
0.7500"
Projection (Decimal Inch):
0.0300"
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Corner Radius (Decimal Inch):
0.0060"
Neck Diameter (Decimal Inch):
0.1700"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
