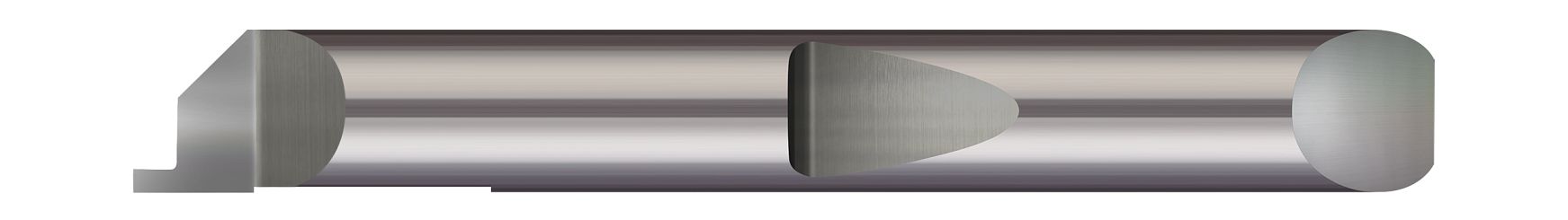

Micro 100 QFG-250-015-025X | 1/64" Width x 0.0250" Projection x 1/4" Minimum Bore Diameter x 3/4" Maximum Bore Depth x 1/4" Shank x 2" OAL AlTiN Coated Carbide Grooving Tool

Micro 100's QFG, its offering of face grooving tools, is optimized for use with the proprietary Micro-Quik quick change system to maximize productivity through reliable accuracy and locational repeatability.

• Designed for generating square grooves in the face of the part
• Polished split face for improved edge retention and chip evacuation while reducing galling
• Split geometry makes the tool as rigid as possible
• Relief ground along Maximum Bore Depth (L2) to avoid interference during deep hole applications
• Coolant fed enabled shank design
• Sharp corner profile
• Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
• AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
• Solid carbide
• CNC ground in the USA
