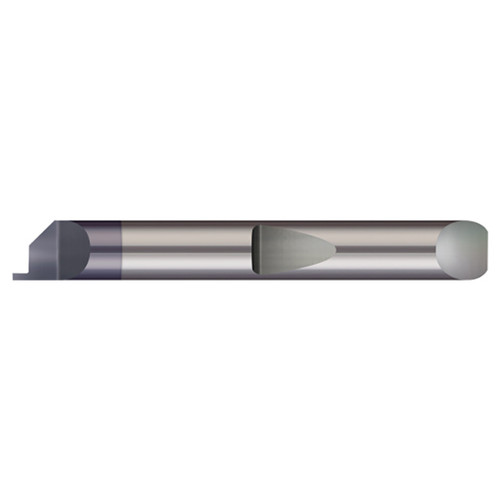

Micro 100 QFG-490-078X | 0.078" Width x 0.500" Minimum Groove Diameter x 0.1000" Projection x 1/2" Shank x 2-1/2" OAL AlTiN Coated Carbide Quick Change Grooving Tool

$83.40
Ships:
From Partner Facility
Brand:
Micro 100
Material:
Carbide
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Projection (Decimal Inch):
0.1000"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.50"
Finish/Coating:
AlTiN
Width (Decimal Inch):
0.078"
Minimum Groove Diameter (Decimal Inch):
0.500"
Grooving Tool Type:
Face Grooving
Ships:
From Partner Facility
IsDiscontinued:
SKU:
25129474
UPC:
Weight:
0.01 LBS
Shipping:
Free Shipping
Product Specifications
Min Bore Diameter (Decimal Inch) 0.4900"
Hand Direction Right Hand
Finish/Coating AlTiN
Projection (Decimal Inch) 0.1000"
Shank Diameter (Inch) 1/2"
Shank Diameter (Decimal Inch) 0.5000"
Length from Holder (Decimal Inch) 1.040"
Overall Length (Inch) 2-1/2"
Overall Length (Decimal Inch) 2.50"
Split Length (Decimal Inch) 0.345"
Tooth Width (Inch) 5/64"
Tooth Width (Decimal Inch) 0.0780"
