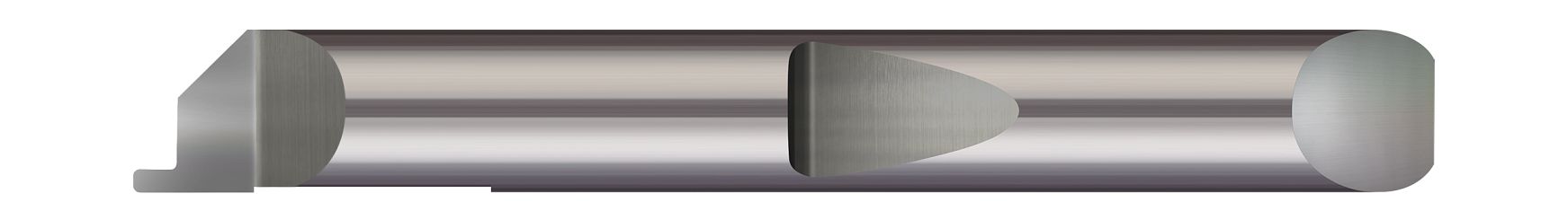

Micro 100 QFGC3-250-078-100X | 5/64" Width x 0.1000" Projection x 1/4" Minimum Bore Diameter x 3/4" Maximum Bore Depth x 1/4" Shank x 2" OAL AlTiN Coated Carbide Grooving Tool

$46.40
Brand:
Micro 100
Finish/Coating:
AlTiN
Projection (Decimal Inch):
0.1000"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
interval quantity:
1
SKU:
25175751
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
QFGC3-250-078-100X

Related Products

This offering of Micro 100 Face Grooving products features tooling with a corner radius profile for improved tool life that is relieved along the axis for deep reach applications. Also available in standard shank styles.

  • Designed for generating corner radius grooves within the face of the part
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split geometry makes the tool as rigid as possible
  • Relief ground along Maximum Bore Depth (L2) to avoid interference during deep hole applications
  • Coolant fed enabled shank design
  • Corner radius profile
  • Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.2500" (1/4)
Hand Direction Right Hand
Finish/Coating AlTiN
Max Bore Depth (Inch) 0.750" (3/4)
Projection (Inch) 0.1000"
Shank Diameter (Inch) 0.2500" (1/4)
Centerline Offset (Inch) 0.1250" (1/8)
Radius (Inch) 0.0030"
Length from Holder 0.853"
Overall Length (Inch) 2" (2)
Overall Reach (Inch) 0.750" (3/4)
Tooth Width (Inch) 0.0780" (5/64)
