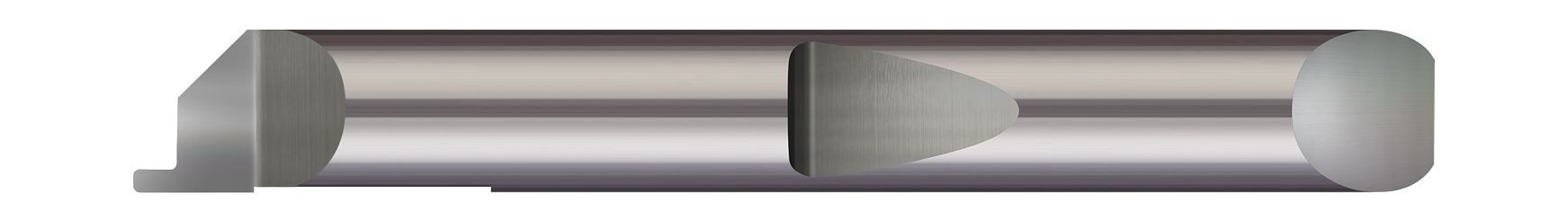

Micro 100 QFGC3-312-040-050X | 0.0400" Width x 0.0500" Projection x 5/16" Minimum Bore Diameter x 3/4" Maximum Bore Depth x 5/16" Shank x 2" OAL AlTiN Coated Carbide Grooving Tool

This offering of Micro 100 Face Grooving products features tooling with a corner radius profile for improved tool life that is relieved along the axis for deep reach applications. Also available in standard shank styles.

• Designed for generating corner radius grooves within the face of the part
• Polished split face for improved edge retention and chip evacuation while reducing galling
• Split geometry makes the tool as rigid as possible
• Relief ground along Maximum Bore Depth (L2) to avoid interference during deep hole applications
• Coolant fed enabled shank design
• Corner radius profile
• Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
• AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
• Solid carbide
• CNC ground in the USA
