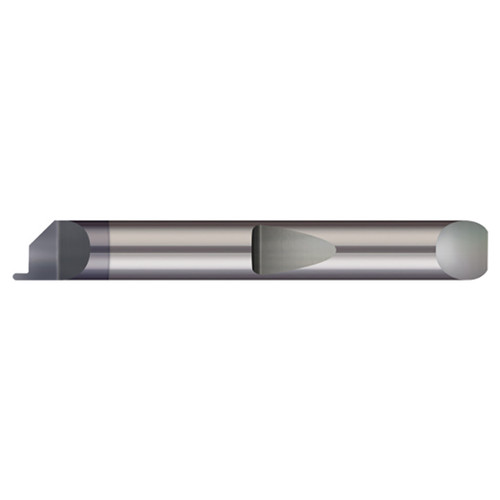

Micro 100 QFGF-180-030X | 0.030" Width x 0.190" Minimum Groove Diameter x 0.050" Projection x 0.015" Radius x 3/16" Shank x 1-1/2" OAL AlTiN Coated Carbide Full Radius Quick Change Grooving Tool

About This Item

Product Specifications

Min Bore Diameter (Decimal Inch)	0.1800"
Hand Direction	Right Hand
Finish/Coating	AlTiN
Projection (Decimal Inch)	0.0500"
Shank Diameter (Inch)	3/16"
Shank Diameter (Decimal Inch)	0.1875"
Radius (Inch)	1/64"
Radius (Decimal Inch)	0.0150"
Face Dimension (Decimal Inch)	0.173"
Length from Holder (Decimal Inch)	0.590"
Overall Length (Inch)	1-1/2"
Overall Length (Decimal Inch)	1.50"
Split Length (Decimal Inch)	0.155"
Tooth Width (Decimal Inch)	0.0300"
