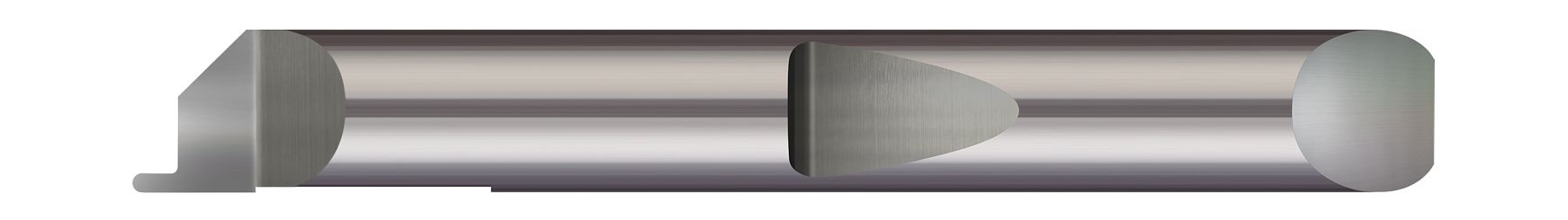

Micro 100 QFGF-187-050-075X | 0.0500" Width x 0.0750" Projection x 3/16" Minimum Bore Diameter x 1/2" Maximum Bore Depth x 3/16" Shank x 1-1/2" OAL AlTiN Coated Carbide Grooving Tool

Engineered for generating full radius grooves in the face of a part, this Full Radius Grooving Tool features a polished split face for improved edge retention and chip evacuation while reducing galling.

• Designed for generating full radius grooves in the face of the part
• Polished split face for improved edge retention and chip evacuation while reducing galling
• Split geometry makes the tool as rigid as possible
• Coolant fed enabled shank design
• Full radius profile
• Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
• AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
• Solid Carbide
