Product Specifications
| Min Bore Diameter (Decimal Inch) | 0.2300" |
| Hand Direction | Right Hand |
| Finish/Coating | AlTiN |
| Projection (Decimal Inch) | 0.0500" |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Radius (Decimal Inch) | 0.0100" |
| Face Dimension (Decimal Inch) | 0.240" |
| Length from Holder (Decimal Inch) | 0.853" |
| Overall Length (Inch) | 2" |
| Overall Length (Decimal Inch) | 2.00" |
| Split Length (Decimal Inch) | 0.190" |
| Tooth Width (Decimal Inch) | 0.0200" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Material:
Carbide
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Projection (Decimal Inch):
0.0500"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.00"
Finish/Coating:
AlTiN
Width (Decimal Inch):
0.020"
Minimum Groove Diameter (Decimal Inch):
0.240"
Radius (Decimal Inch):
0.0100"

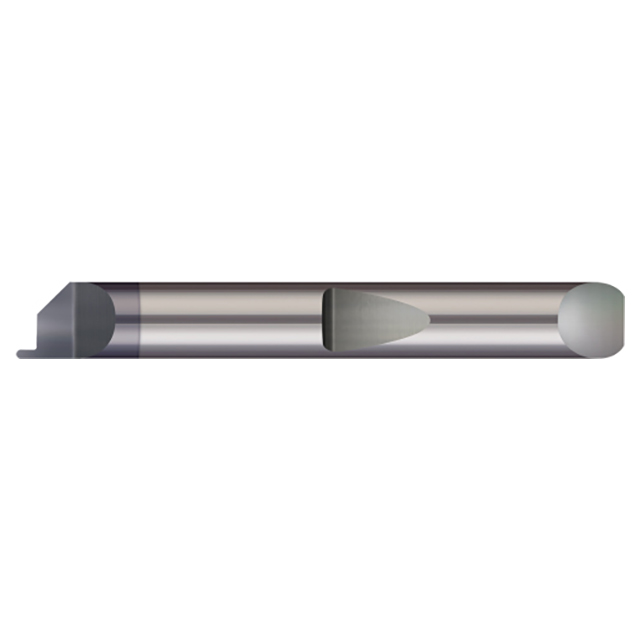

Grooving Tool Type:
Face Grooving
Ships:
From Partner Facility
IsDiscontinued:
