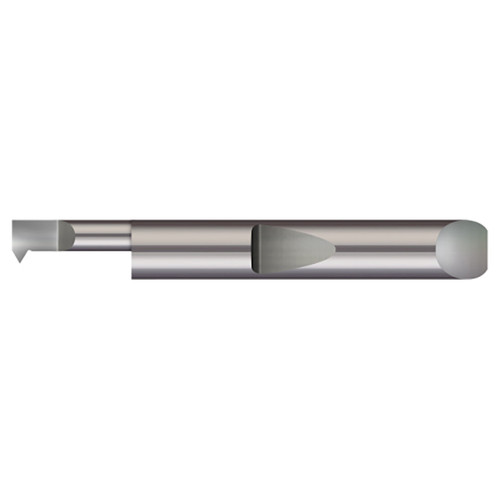

Micro 100 QIT-080350 | 48-56 Thread Range x 0.080" Minimum Bore Diameter x 0.350" Maximum Bore Depth x 3/16" Shank x 1.500" OAL Uncoated Brazed Carbide Single Point 60 Degree Right Hand Threading Tool

About This Item

Product Specifications

Min Bore Diameter (Decimal Inch)	0.0800"
Hand Direction	Right Hand
Finish/Coating	Uncoated
Max Bore Depth (Decimal Inch)	0.350"
Projection (Decimal Inch)	0.0200"
Shank Diameter (Inch)	3/16"
Shank Diameter (Decimal Inch)	0.1875"
Centerline Offset (Decimal Inch)	-0.0138"
Offset (Inch)	1/64"
Offset (Decimal Inch)	0.015"
Corner Radius (Decimal Inch)	0.002"
Length from Holder (Decimal Inch)	0.590"
Neck Diameter (Decimal Inch)	0.0600"
Overall Length (Inch)	1-1/2"
Overall Length (Decimal Inch)	1.50"
Thread Size	48-56
