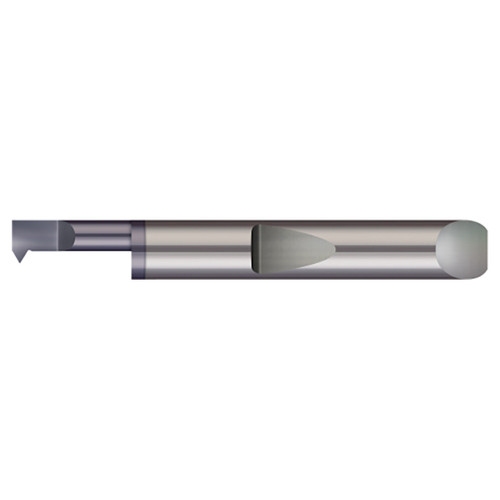

Micro 100 QIT-2301500X | 20-48 Thread Range x 0.230" Minimum Bore Diameter x 1-1/2" Maximum Bore Depth x 5/16" Shank x 3.000" OAL AlTiN Coated Brazed Carbide Single Point 60 Degree Right Hand Threading Tool

About This Item

Product Specifications

Min Bore Diameter (Decimal Inch)	0.2300"
Hand Direction	Right Hand
Finish/Coating	AlTiN
Max Bore Depth (Inch)	1-1/2"
Max Bore Depth (Decimal Inch)	1.500"
Projection (Decimal Inch)	0.0550"
Shank Diameter (Inch)	5/16"
Shank Diameter (Decimal Inch)	0.3125"
Centerline Offset (Decimal Inch)	0.0738"
Offset (Decimal Inch)	0.038"
Corner Radius (Decimal Inch)	0.002"
Length from Holder (Decimal Inch)	1.853"
Neck Diameter (Decimal Inch)	0.1750"
Overall Length (Inch)	3"
Overall Length (Decimal Inch)	3.00"
Thread Size	20-48

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
