Product Specifications
| Manufacturer Part Number | QIT-2301750 |
| Minimum Bore Diameter (Decimal Inch) | 0.2520" |
| Maximum Bore Diameter (Decimal Inch) | 1.750" |
| Maximum Bore Diameter (Inch) | 1-3/4" |
| Projection (Decimal Inch) | 0.0550" |
| Shank Diameter (Decimal Inch) | 0.3125" |
| Projection (Decimal Inch) | 5/16" |
| Shank Diameter(mm) | 0.0737" |
| Offset (Decimal Inch) | 0.038" |
| Corner Radius (Decimal Inch) | 0.002" |
| Hand Direction | Right Hand |
| Length from Holder (Decimal Inch) | 1.853" |
| Neck Diameter (Decimal Inch) | 0.1750" |
| Overall Length (Decimal Inch) | 3.00" |
| Overall Length (Inch) | 3" |
| Thread Size | 10-48" |
| TPI | 10-48 TPI |
| Coating | Uncoated |

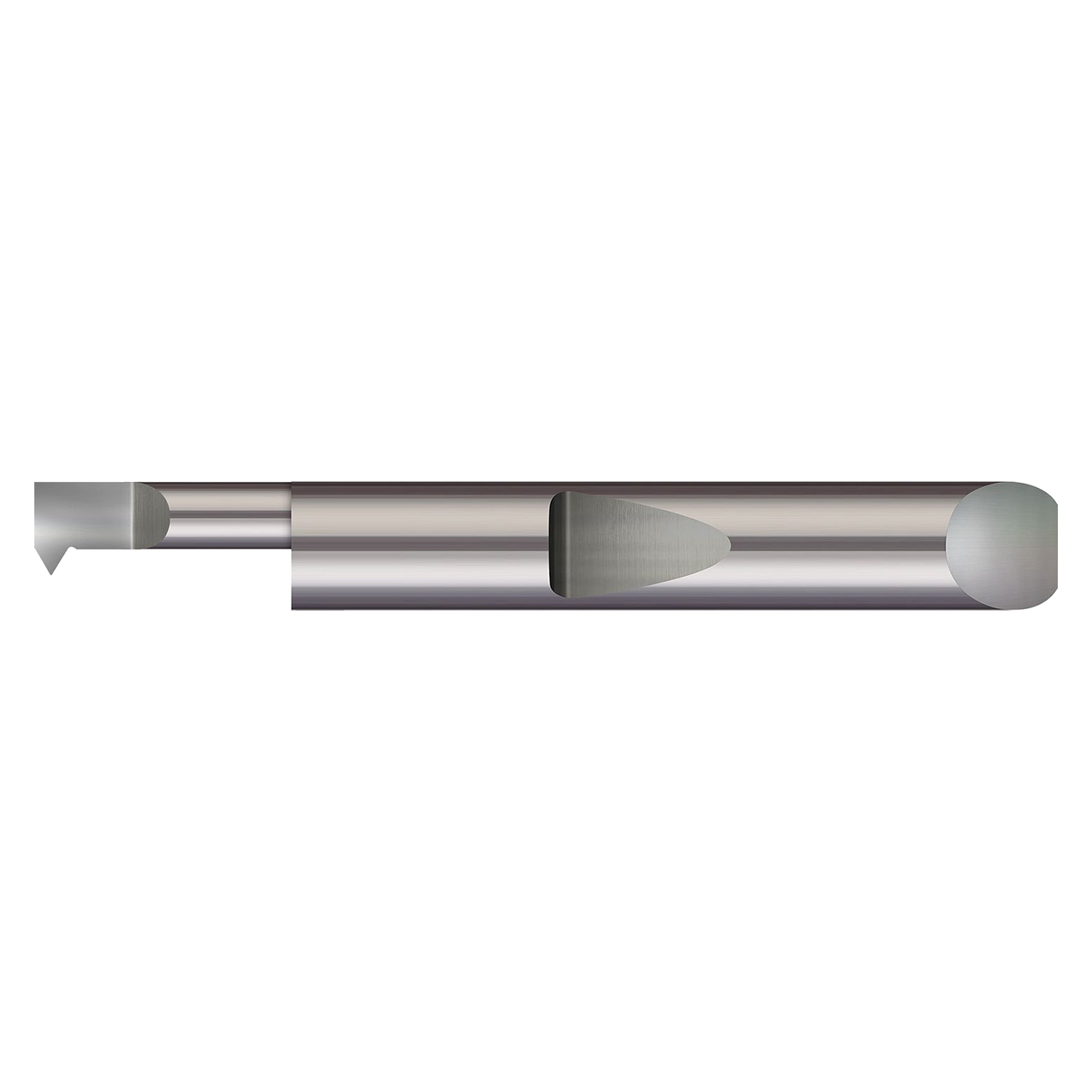

| Product Type | Single Point Threading Tool |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.2520"
Maximum Bore Depth (Decimal Inch):
1.7500"
Maximum Bore Depth (Inch):
1-3/4"
Neck Diameter (Decimal Inch):
0.1750"
Head Width (Decimal Inch):
0.2300"
Finish/Coating:
Uncoated
Projection (Decimal Inch):
0.0550"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (Inch):
5/16"
Corner Radius (Decimal Inch):
0.0020"
Threads per Inch (TPI):
10-48
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
