Product Specifications
| Manufacturer Part Number | QIT-4902500 |
| Minimum Bore Diameter (Decimal Inch) | 0.5120" |
| Minimum Bore Diameter (mm) | 13.00mm |
| Maximum Bore Diameter (Decimal Inch) | 2.500" |
| Maximum Bore Diameter (Inch) | 2-1/2" |
| Projection (Decimal Inch) | 0.1200" |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Projection (Decimal Inch) | 1-2" |
| Shank Diameter(mm) | 0.2400" |
| Offset (Decimal Inch) | 0.078" |
| Offset (Inch) | 5/64" |
| Corner Radius (Decimal Inch) | 0.002" |
| Hand Direction | Right Hand |
| Length from Holder (Decimal Inch) | 2.540" |
| Neck Diameter (Decimal Inch) | 0.3700" |
| Overall Length (Decimal Inch) | 4.00" |
| Overall Length (Inch) | 4" |
| Thread Size | 5-32" |
| TPI | 5-32 TPI |
| Coating | Uncoated |

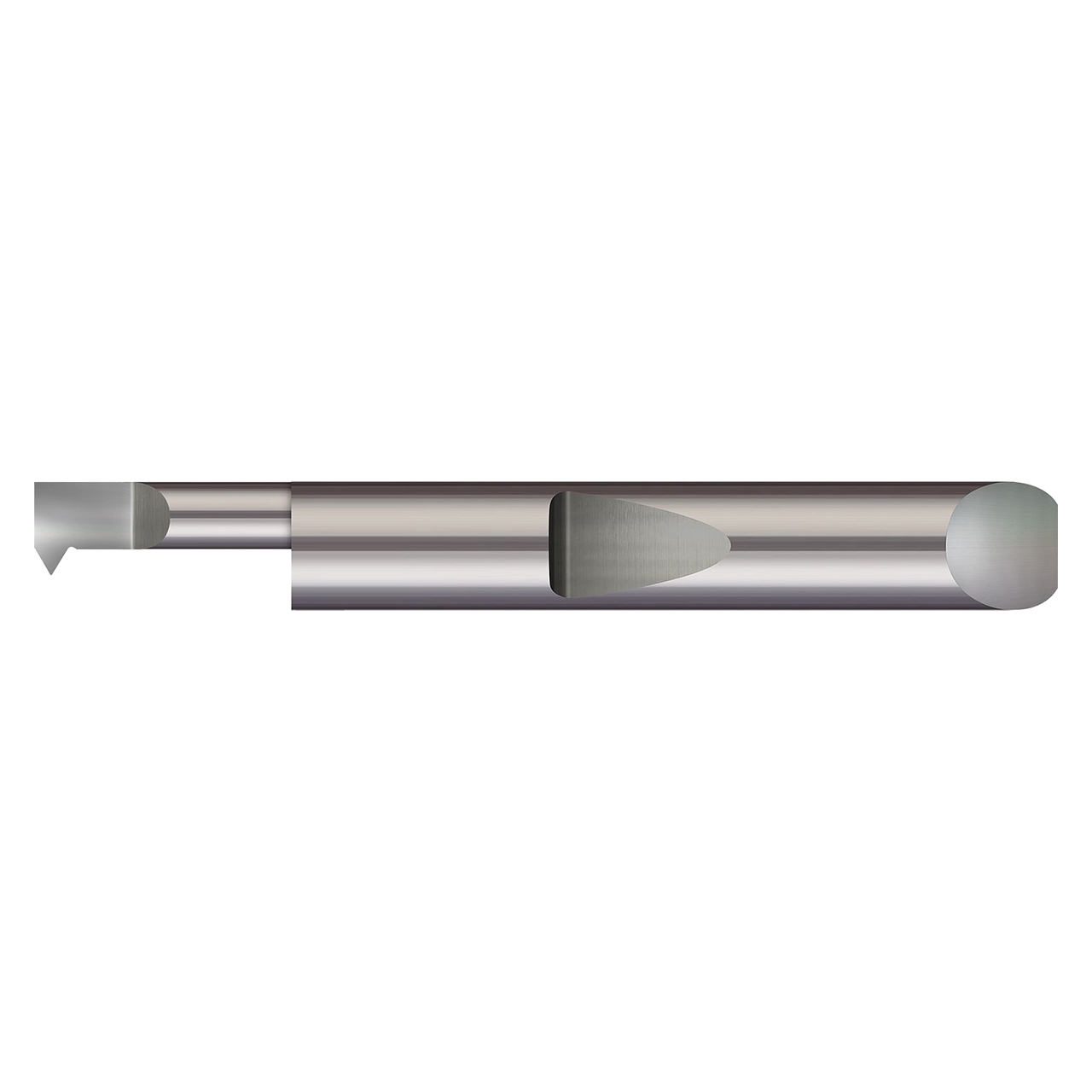

| Product Type | Single Point Threading Tool |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Micro 100
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
