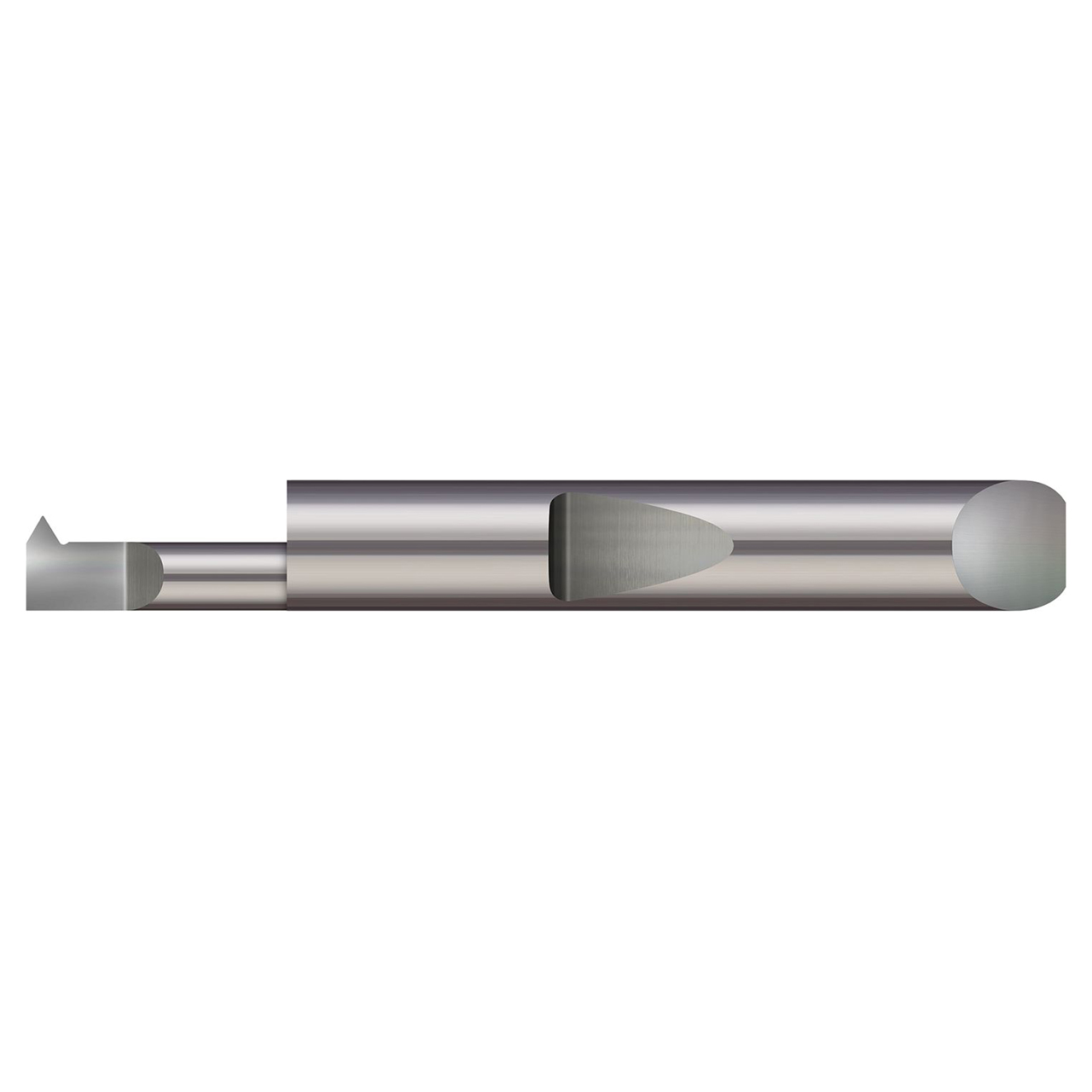

Micro 100 QITL-140500 | 16-56 Thread 0.1560" (5/32) Minimum Bore Diameter x 0.500" (1/2) Maximum Bore Depth x 0.0350" Projection x 0.002" Radius Uncoated Left Hand Quick Change Threading Tool

$46.10
Brand:
Micro 100
Minimum Bore Diameter (Inch):
5/32"
Minimum Bore Diameter (Decimal Inch):
0.1560"
Head Width (Inch):
9/64"
Head Width (Decimal Inch):
0.1400"
Finish/Coating:
Uncoated
Maximum Bore Depth (Inch):
1/2"
Maximum Bore Depth (Decimal Inch):
0.5000"
Projection (Decimal Inch):
0.0350"
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Corner Radius (Decimal Inch):
0.0020"
Neck Diameter (Decimal Inch):
0.1000"
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
SKU:
25236959
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

These Micro 100 quick change Un threading tools feature a single point, and are designed for threading multiple thread pitches (ANSI, Un, and Metric 60°) in a left hand threading application.

Features:
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split face geometry provides optimal edge strength
  • Coolant fed enabled shank design
  • Corner radius profile
  • Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberQITL-140500
Minimum Bore Diameter (Inch)0.1560" (5/32)
Maximum Bore Depth (Inch)0.500" (1/2)
Projection (Inch)0.0350"
Shank Diameter (Inch)0.1875" (3/16)
Centerline Offset (Inch)0.0462"
Offset (Inch)0.020"
Corner Radius (Inch)0.002"
Length from Holder (Inch)0.590"
Overall Length (Inch)1.50" (1-1/2)
Neck Diameter (Inch)0.1000"
Thread Size16-56
Hand DirectionLeft Hand
CoatingUncoated
