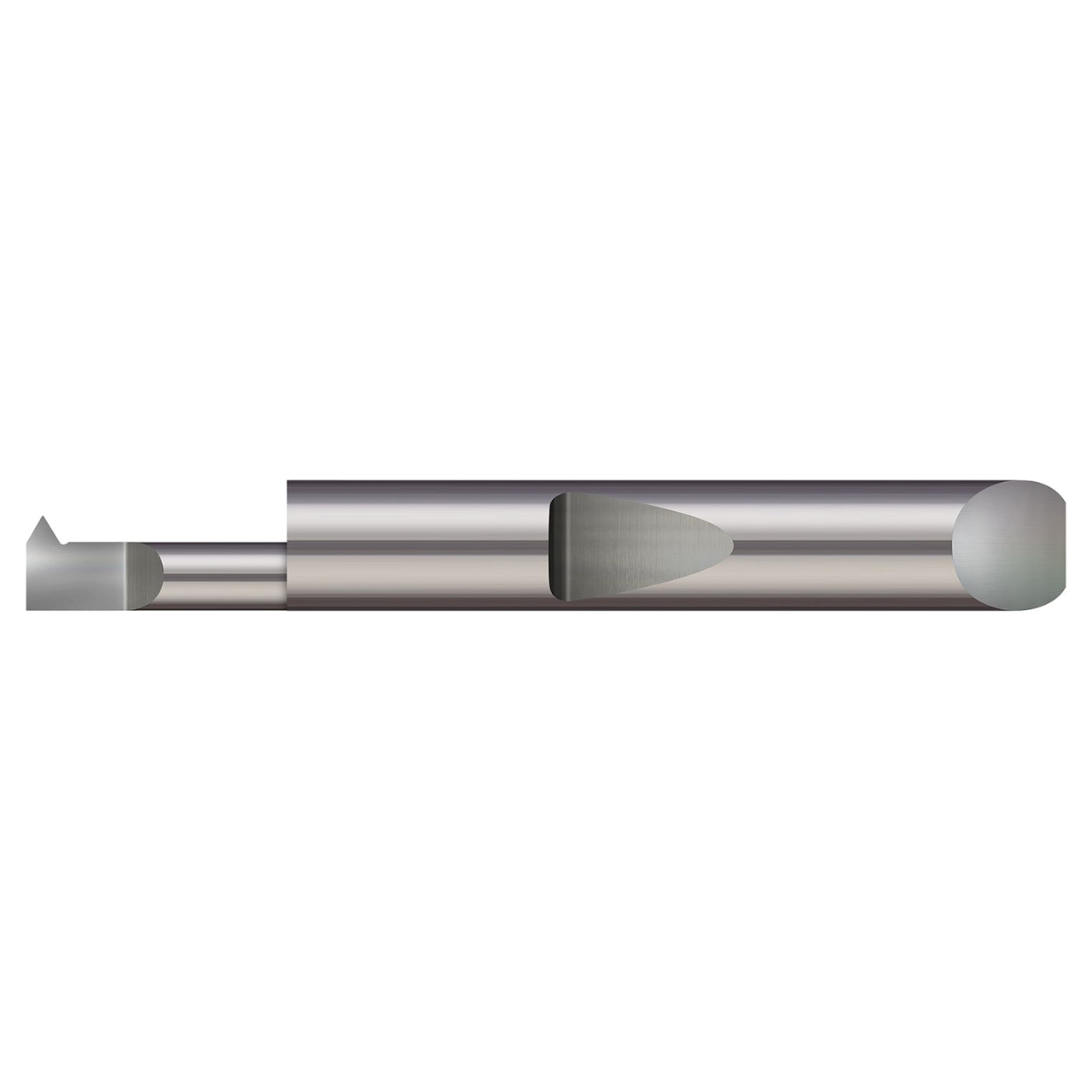

Micro 100 QITL-3201000X | 8-40 Thread 0.3420" Minimum Bore Diameter x 1.000" (1) Maximum Bore Depth x 0.0750" Projection x 0.002" Radius AlTiN Coated Left Hand Quick Change Threading Tool

$81.90
SKU:
25236978
Weight:
1.23 LBS
Shipping:
Free Shipping

These Micro 100 quick change Un threading tools feature a single point, and are designed for threading multiple thread pitches (ANSI, Un, and Metric 60°) in a left hand threading application.

Features:
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split face geometry provides optimal edge strength
  • Coolant fed enabled shank design
  • Corner radius profile
  • Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberQITL-3201000X
Minimum Bore Diameter (Inch)0.3420"
Maximum Bore Depth (Inch)1.000" (1)
Projection (Inch)0.0750"
Shank Diameter (Inch)0.3750" (3/8)
Centerline Offset (Inch)0.1325"
Offset (Inch)0.043"
Corner Radius (Inch)0.002"
Length from Holder (Inch)1.353"
Overall Length (Inch)2.50" (2-1/2)
Neck Diameter (Inch)0.2400"
Thread Size8-40
Hand DirectionLeft Hand
CoatingAlTiN
