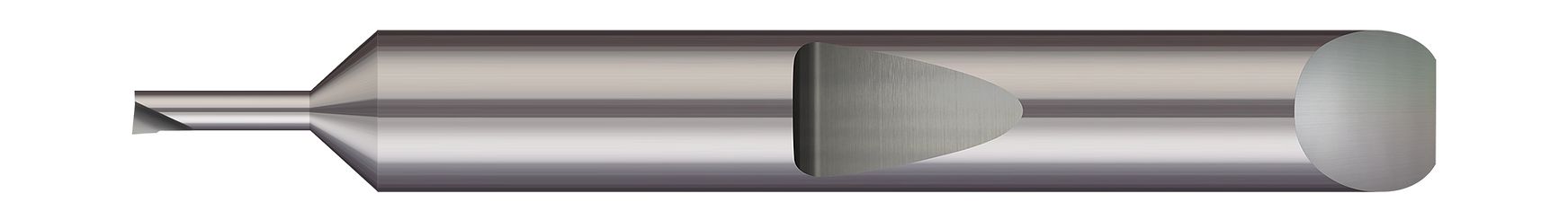

Micro 100 QMBB-025125 | 0.0225" Minimum Bore Diameter x 1/8" Maximum Bore Depth x 3/16" Shank x 1-1/2" OAL Uncoated Carbide Boring Bar

$44.85
Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.0225"
Head Width (Decimal Inch):
0.0250"
Finish/Coating:
Uncoated
Maximum Bore Depth (Inch):
1/8"
Maximum Bore Depth (Decimal Inch):
0.1250"
Projection (Decimal Inch):
0.0025"
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Neck Diameter (Decimal Inch):
0.0200"
Neck Diameter (mm):
0.50mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
SKU:
10233103
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
QMBB-025125

Designed for facing and boring application in bores .015" and larger, miniature right hand boring tools feature a polished split face for improved edge retention and chip evacuation while reducing galling.

  • Designed for facing and boring applications in bores .015" and larger
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split geometry makes the tool as rigid as possible
  • On center neck design allows for static and live/rotating applications
  • Coolant fed enabled shank design
  • Sharp corner profile
  • Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.0225"
Hand Direction Right Hand
Finish/Coating Uncoated
Max Bore Depth (Inch) 0.125" (1/8)
Projection (Inch) 0.0025"
Shank Diameter (Inch) 0.1875" (3/16)
Centerline Offset (Inch) 0.0125"
Length from Holder 0.590"
Neck Diameter (Inch) 0.0200" (.5 mm)
Overall Length (Inch) 1.50" (1-1/2)
Rotational Min Bore Diameter (Inch) 0.025"
Tooth Width (Inch) 0.0250"
