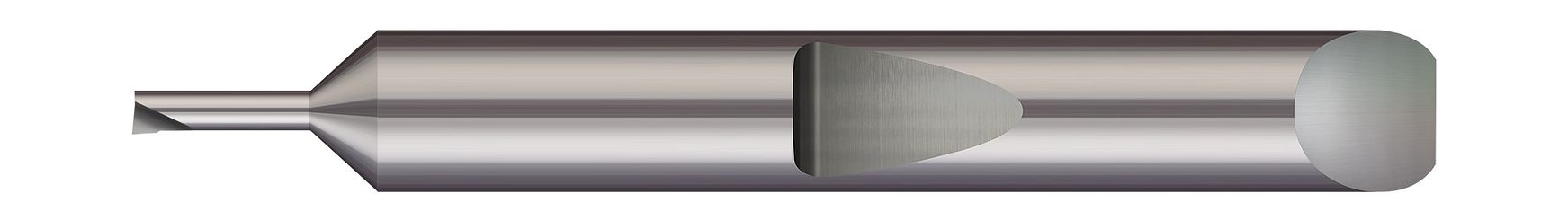

Micro 100 QMBB-040100 | 0.0365" Minimum Bore Diameter x 0.100" Maximum Bore Depth x 3/16" Shank x 1-1/2" OAL Uncoated Carbide Boring Bar

$38.75 $36.27
(You save $2.48)
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
10232730
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Designed for facing and boring application in bores .015" and larger, miniature right hand boring tools feature a polished split face for improved edge retention and chip evacuation while reducing galling.

  • Designed for facing and boring applications in bores .015" and larger
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split geometry makes the tool as rigid as possible
  • On center neck design allows for static and live/rotating applications
  • Coolant fed enabled shank design
  • Sharp corner profile
  • Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.0365"
Hand Direction Right Hand
Finish/Coating Uncoated
Max Bore Depth (Inch) 0.100"
Projection (Inch) 0.0035"
Shank Diameter (Inch) 0.1875" (3/16)
Centerline Offset (Inch) 0.0200"
Length from Holder 0.590"
Neck Diameter (Inch) 0.0320"
Overall Length (Inch) 1.50" (1-1/2)
Rotational Min Bore Diameter (Inch) 0.040"
Tooth Width (Inch) 0.0250"
