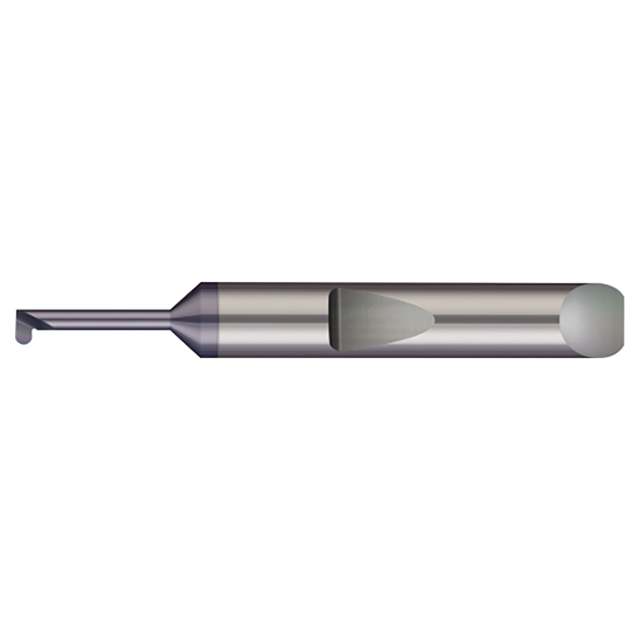

Micro 100 QMFR-015-375-080X | 0.015" Width x 0.080" Minimum Bore Diameter x 0.375" Maximum Bore Depth x 0.007" Radius x 3/16" Shank x 1-1/2" OAL AlTiN Coated Carbide Full Radius Miniature Quick Change Grooving Tool

About This Item

Product Specifications

Min Bore Diameter (Decimal Inch)	0.0800"
Hand Direction	Right Hand
Finish/Coating	AlTiN
Max Bore Depth (Inch)	3/8"
Max Bore Depth (Decimal Inch)	0.375"
Projection (Decimal Inch)	0.0250"
Shank Diameter (Inch)	3/16"
Shank Diameter (Decimal Inch)	0.1875"
Centerline Offset (Decimal Inch)	0.0525"
Radius (Decimal Inch)	0.0075"
Face Dimension (Decimal Inch)	0.094"
Length from Holder (Decimal Inch)	0.590"
Neck Diameter (Decimal Inch)	0.0550"
Overall Length (Inch)	1-1/2"
Overall Length (Decimal Inch)	1.50"
Tooth Width (Inch)	1/64"
Tooth Width (Decimal Inch)	0.0150"
