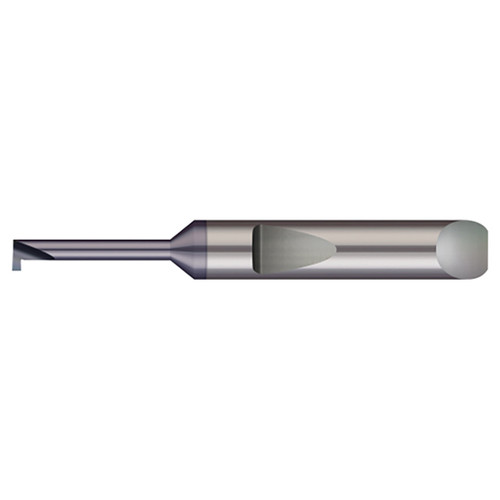

Micro 100 QMRR-015-150-060X | 0.015" Width x 0.060" Minimum Bore Diameter x 0.150" Maximum Bore Depth x 3/16" Shank x 1-1/2" OAL AlTiN Coated Carbide Miniature Retaining Ring Quick Change Grooving Tool

About This Item

Product Specifications

Min Bore Diameter (Decimal Inch)	0.0600"
Hand Direction	Right Hand
Finish/Coating	AlTiN
Max Bore Depth (Decimal Inch)	0.150"
Projection (Decimal Inch)	0.0200"
Shank Diameter (Inch)	3/16"
Shank Diameter (Decimal Inch)	0.1875"
Centerline Offset (Decimal Inch)	0.0400"
Face Dimension (Decimal Inch)	0.094"
Length from Holder (Decimal Inch)	0.590"
Neck Diameter (Decimal Inch)	0.0400"
Overall Length (Inch)	1-1/2"
Overall Length (Decimal Inch)	1.50"
Tooth Width (Inch)	1/64"
Tooth Width (Decimal Inch)	0.0150"
