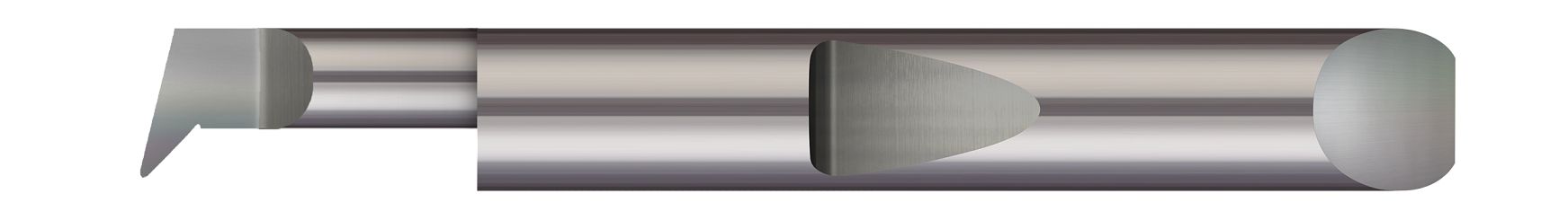

Micro 100 QPA2-080200X | 0.0900" Minimum Bore Diameter x 0.200" Maximum Bore Depth x 3/16" Shank x 1-1/2" OAL AlTiN Coated Carbide Profiling Tool

$34.95 $33.35
(You save $1.60)
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25202240
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
QPA2-080200X

Designed for both radial and axial profiling, this tool is an excellent choice for fine finishing applications. Offered uncoated, or with AlTiN coating for added lubricity and increased wear resistance in difficult to machine materials.

  • Designed for both radial and axial profiling
  • Unique design maximizes tool versatility and part feature creation
  • Excellent choice for fine finishing
  • Coolant fed enabled shank design
  • Corner radius profile
  • Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.0900"
Hand Direction Right Hand
Finish/Coating AlTiN
Max Bore Depth (Inch) 0.200"
Projection (Inch) 0.0250"
Shank Diameter (Inch) 0.1875" (3/16)
Centerline Offset (Inch) -0.0138"
Corner Radius (Inch) 0.002"
Length from Holder 0.590"
Neck Diameter (Inch) 0.0550" (1.4 mm)
Overall Length (Inch) 1.50" (1-1/2)
