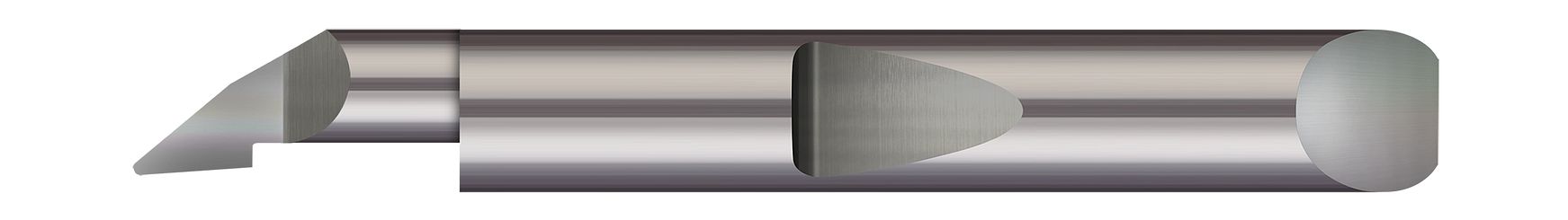

Micro 100 QPF8-140500X | 0.152" Minimum Bore Diameter x 1/2" Maximum Bore Depth x 3/16" Shank x 1-1/2" OAL AlTiN Coated Carbide Profiling Tool

The unique design of this tool maximizes tool versatility and part feature creation, and has a polished split face for improved edge retention and chip evacuation while reducing galling.

• Designed for both radial and axial profiling
• Unique design maximizes tool versitilty and part feature creation
• Polished split face for improved edge retention and chip evacuation while reducing galling
• Split geometry makes the tool as rigid as possible
• Coolant fed enabled shank design
• Corner radius profile
• Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
• AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
• Solid carbide
• CNC ground in the USA
