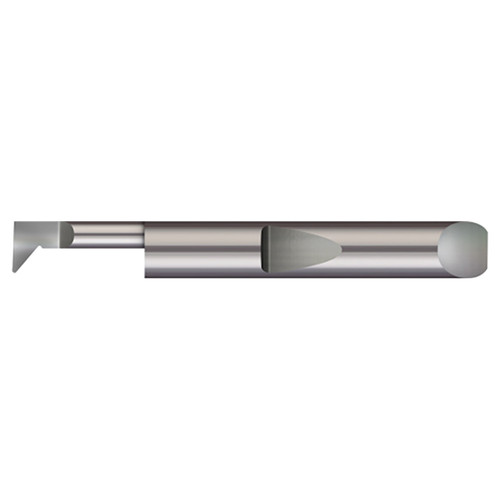

Micro 100 QPR-110500 | 0.110" Minimum Bore Diameter x 0.500" Maximum Bore Depth x 3/16" Shank x 1-1/2" OAL Uncoated Carbide Quick Change Radial Profiling Tool

About This Item

Product Specifications

Min Bore Diameter (Decimal Inch)	0.1100"
Hand Direction	Right Hand
Finish/Coating	Uncoated
Max Bore Depth (Inch)	1/2"
Max Bore Depth (Decimal Inch)	0.500"
Projection (Decimal Inch)	0.0400"
Shank Diameter (Inch)	3/16"
Shank Diameter (Decimal Inch)	0.1875"
Centerline Offset (Decimal Inch)	0.0163"
Corner Radius (Decimal Inch)	0.005"
Length from Holder (Decimal Inch)	0.590"
Neck Diameter (Decimal Inch)	0.0700"
Overall Length (Inch)	1-1/2"
Overall Length (Decimal Inch)	1.50"
Tooth Width (Decimal Inch)	0.0340"
