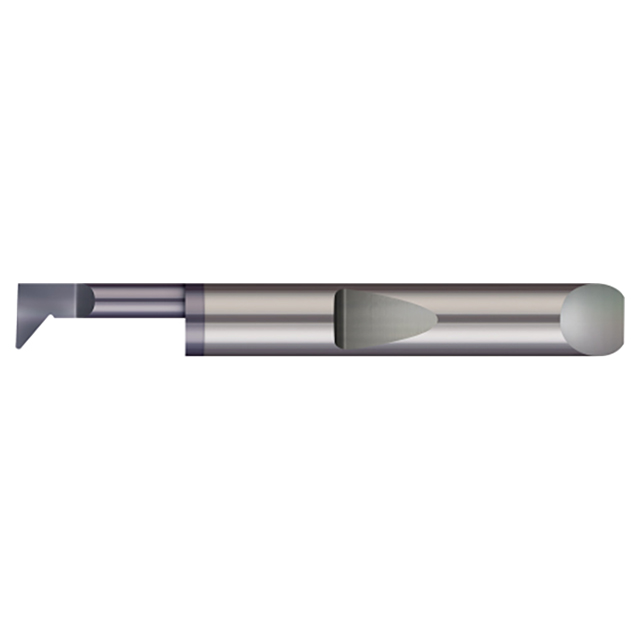

Micro 100 QPR-3601250X | 0.3600" Minimum Bore Diameter x 1.250" Maximum Bore Depth x 3/8" Shank x 2-1/2" OAL AlTiN Coated Carbide Quick Change Radial Profiling Tool

$79.40
Ships:
From Partner Facility
Brand:
Micro 100
Minimum Bore Diameter (Decimal Inch):
0.3600"
Maximum Bore Depth (Inch):
1-1/4"
Maximum Bore Depth (Decimal Inch):
1.250"
Material:
Carbide
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.50"
Finish/Coating:
AlTiN
Profiling Tool Type:
Radial
Ships:
From Partner Facility
IsDiscontinued:
SKU:
25130099
UPC:
Weight:
0.01 LBS
Shipping:
Free Shipping
Product Specifications
Min Bore Diameter (Decimal Inch) 0.3600"
Hand Direction Right Hand
Finish/Coating AlTiN
Max Bore Depth (Inch) 1-1/4"
Max Bore Depth (Decimal Inch) 1.250"
Projection (Decimal Inch) 0.1300"
Shank Diameter (Inch) 3/8"
Shank Diameter (Decimal Inch) 0.3750"
Centerline Offset (Decimal Inch) 0.1725"
Corner Radius (Decimal Inch) 0.008"
Length from Holder (Decimal Inch) 1.353"
Neck Diameter (Decimal Inch) 0.2300"
Overall Length (Inch) 2-1/2"
Overall Length (Decimal Inch) 2.50"
Tooth Width (Inch) 7/64"
Tooth Width (Decimal Inch) 0.1090"
